DTC P0352: Exhaust Side Ignition Coil Power Circuit Malfunction
›
Notes
DTC P0352: Exhaust Side Ignition Coil Power Circuit Malfunction: Notes

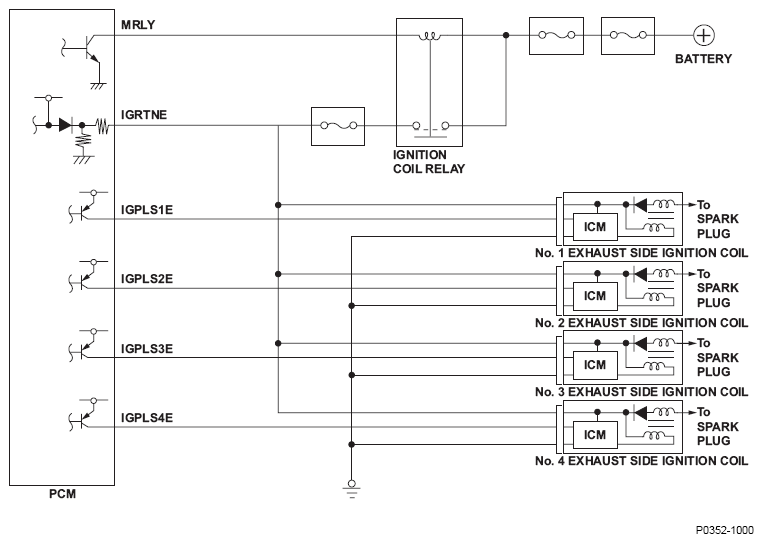

Fig 1: Exhaust Side Ignition Coil Power Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
