Continuously Variable Transmission (CVT)
›
System Description
›
Electronic Control System
›
PCM CVT Control System Electrical Connections-Five-position Transmission
PCM CVT Control System Electrical Connections-Five-position Transmission

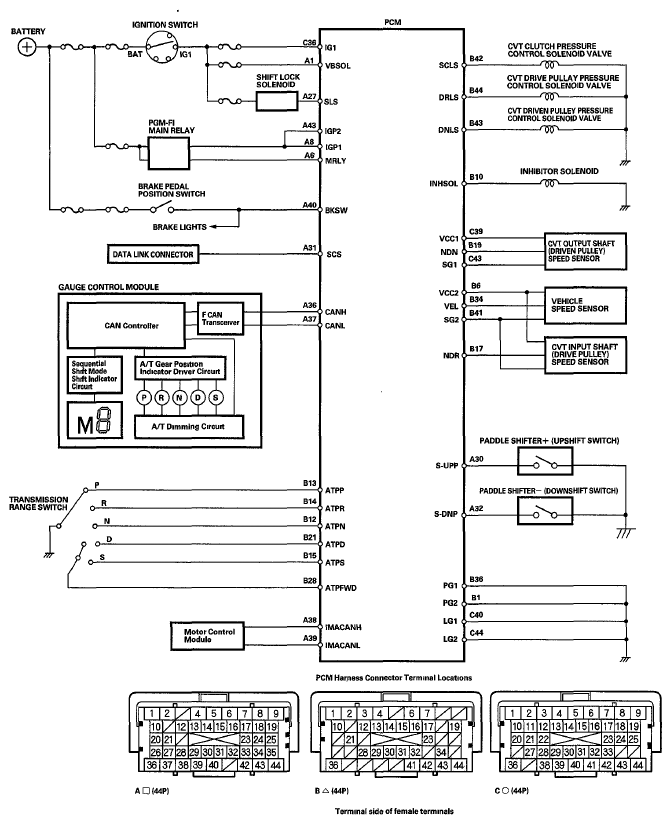

Fig 1: PCM CVT Control System Electrical Connections Circuit Diagram - Five-Position Transmission
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
