Climate Control (DPMS)

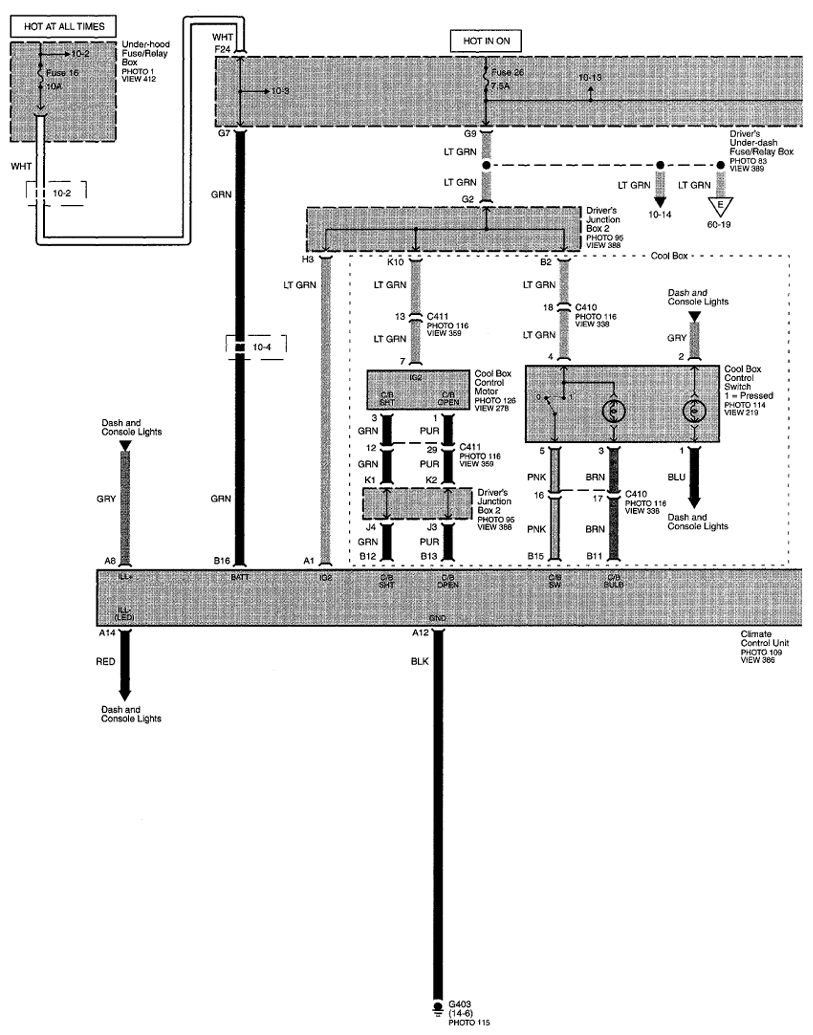

Fig 1: Climate Control (DPMS) Circuit Diagram (Page 60-14)
G07761524

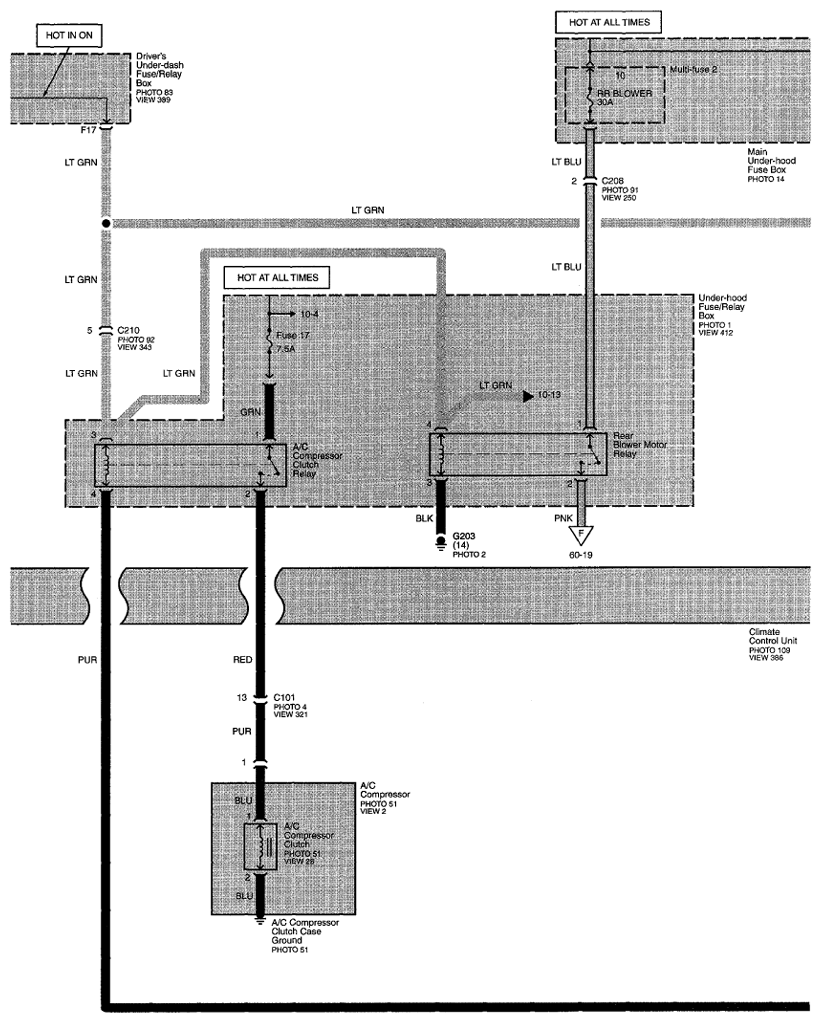

Fig 2: Climate Control (DPMS) Circuit Diagram (Page 60-15)
G07761525

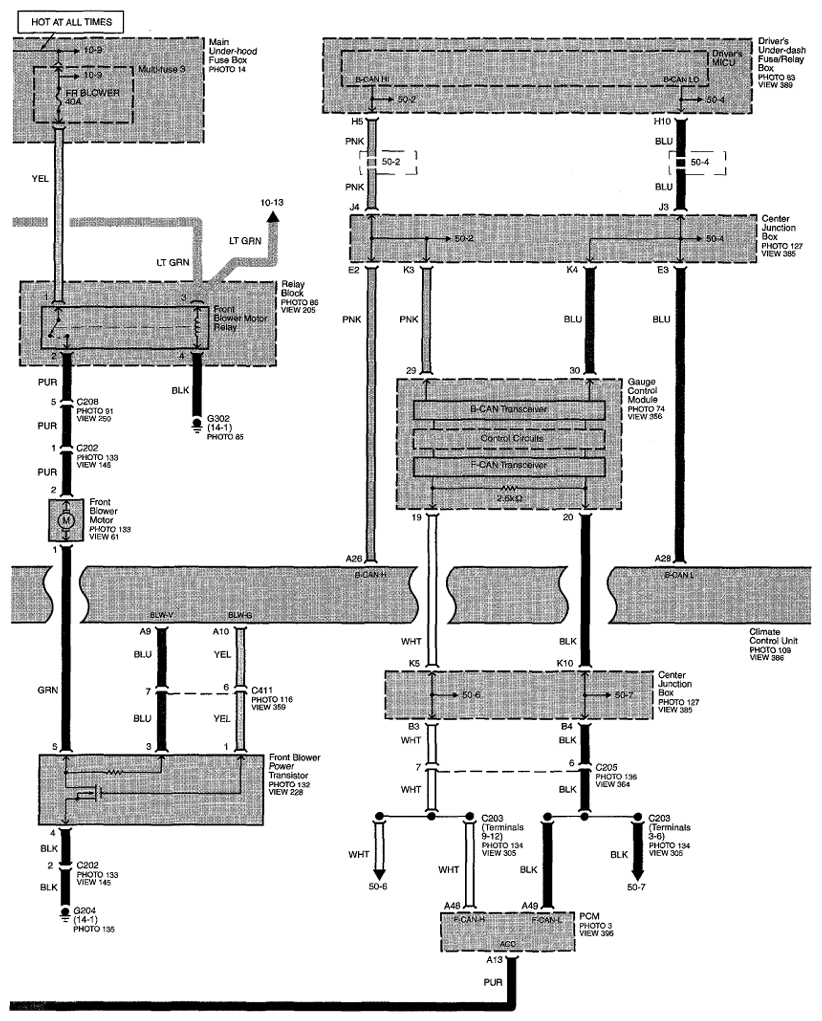

Fig 3: Climate Control (DPMS) Circuit Diagram (Page 60-16)
G07761526

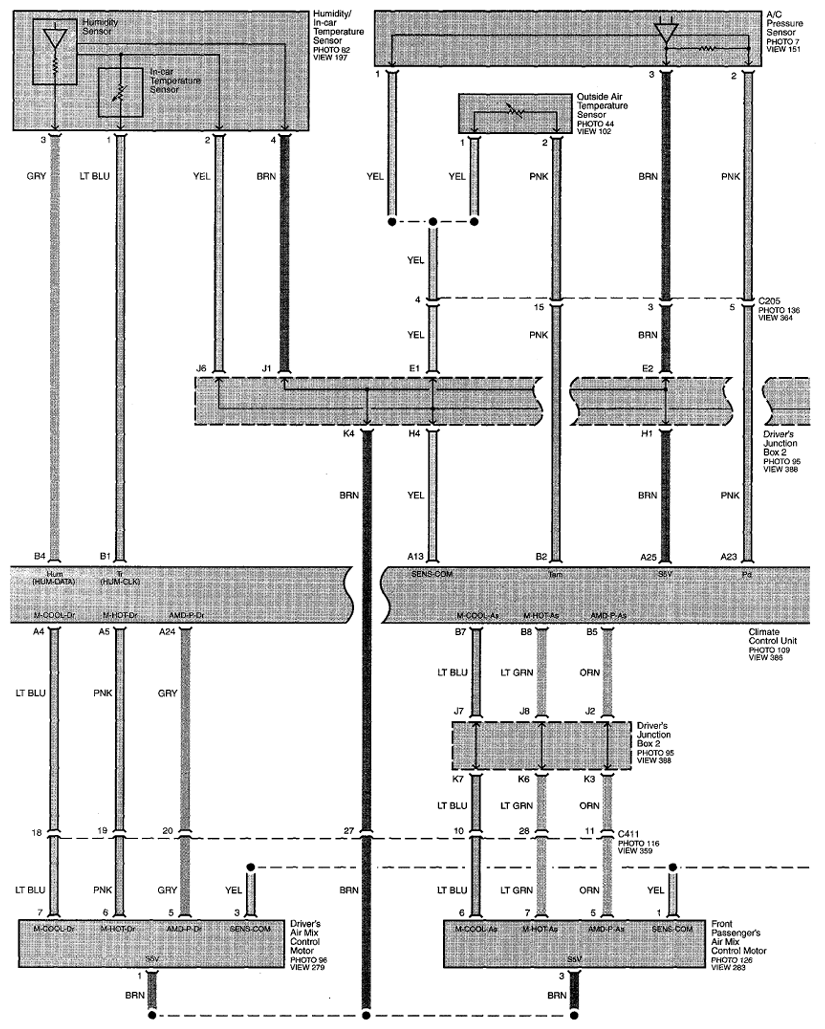

Fig 4: Climate Control (DPMS) Circuit Diagram (Page 60-17)
G07761527

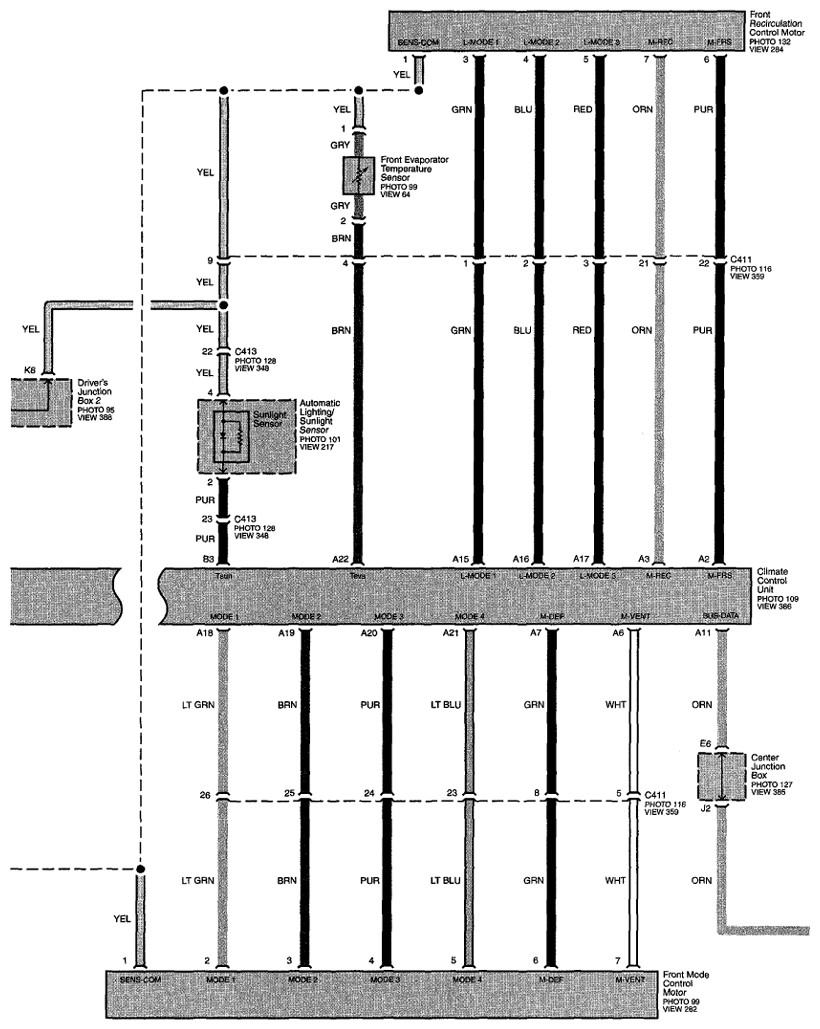

Fig 5: Climate Control (DPMS) Circuit Diagram (Page 60-18)
G07761528

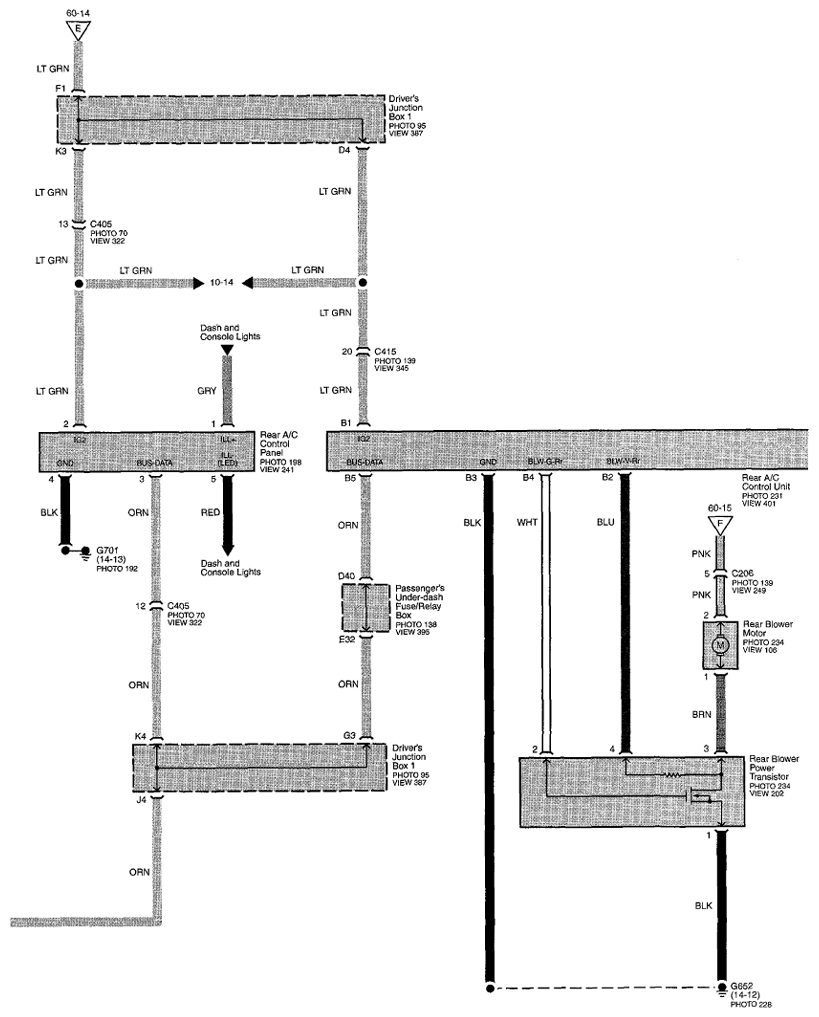

Fig 6: Climate Control (DPMS) Circuit Diagram (Page 60-19)
G07761529

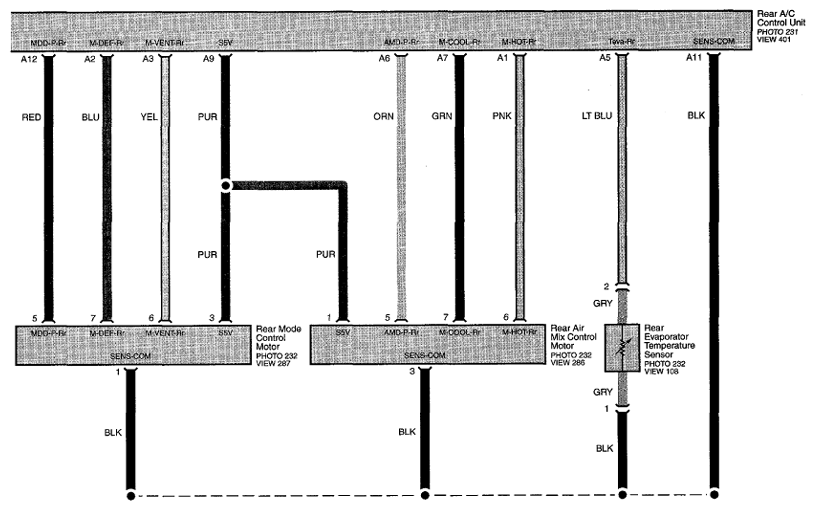

Fig 7: Climate Control (DPMS) Circuit Diagram (Page 60-20)
G07761530
