Gauge Control Module Connector End View (View 356)

• GRY
• Left Side of Dash
• On Dashboard Wire Harness (View of Left Side)

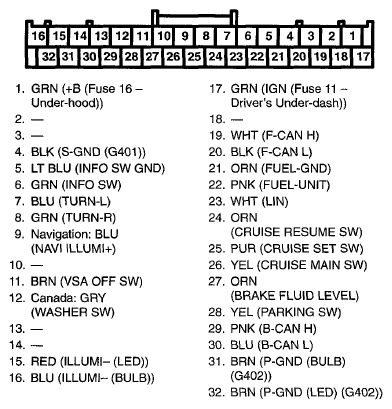

Fig 1: Gauge Control Module Connector Terminals (View 356)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
