| 1 |
MAIN FUSE |
125A |
POWER DISTRIBUTION |

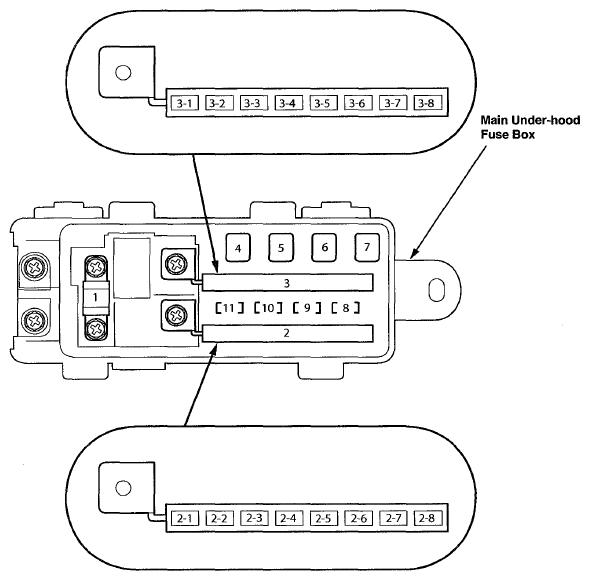

Alternator, Fuses 4, 5, 6, and 7 in the Main Under-hood Fuse Box, Multi-fuse 3 in the Main Under-hood Fuse Box |
|
| 2 |
FAN MAIN |
60A |
POWER DISTRIBUTION |
Fuses 17, 18, 29, and 30 in the Under-hood Fuse/Relay Box |
|
| AS FB-2 |
50A |
POWER DISTRIBUTION |
Fuses 12, 13, 14, 15, 26, 27, and 28 in the Passenger's Under-dash Fuse/Relay Box |
|
| RR BLOWER |
30A |
POWER DISTRIBUTION |
Rear Blower Motor Relay in the Under-hood Fuse-Relay Box |
|
| Fl MAIN |
30A |
POWER DISTRIBUTION |
Fuse 11 in the Main Under-hood Fuse Box, Fuses 8, 9, 10, 11, 12, 13, 14, 15, and 16 in the Under-hood Fuse/Relay Box |
|
| VSA MTR |
40A |
POWER DISTRIBUTION |
VSA Modulator-Control Unit |
|
| STOP&HORN HAZARD |
30A |
POWER DISTRIBUTION |
Fuses 9 and 10 in the Main Under-hood Fuse Box |
|
| VSA FSR |
30A |
POWER DISTRIBUTION |
VSA Modulator-Control Unit |
|
| BMS |
30A |
POWER DISTRIBUTION |
Fuse 8 in the Main Under-hood Fuse Box |
|
| 3 |
DR FB-2 |
50A |
POWER DISTRIBUTION |
Fuses 6, 7, 8, 9, and 33 in the Driver's Under-dash Fuse/Relay Box |
|
| IG1 MAIN |
50A |
POWER DISTRIBUTION |
Ignition Switch, Starter Cut Relay 1 in the Driver's Under-dash Fuse/Relay Box |
|
| RR FB-1 |
60A |
POWER DISTRIBUTION |
Fuses 1, 4, 5, 8, 14, and 15 in the Rear Fuse Box |
|
| AS FB-1 |
50A |
POWER DISTRIBUTION |
Fuses 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, and 18 in the Passenger's Under-dash Fuse/Relay Box |
|
| DR FB-1 |
50A |
POWER DISTRIBUTION |
Fuses 15, 16, 17, 19, 29, 30, and 32 in the Driver's Under-dash Fuse/Relay Box |
|
| RB MAIN |
60A |
POWER DISTRIBUTION |
Fuses 19, 20, 21, 22, 23, 24, 25, and 31 in the Under-hood Fuse/Relay Box, Headlight Low Relay in the Under-hood Fuse/Relay Box |
|
| FR BLOWER |
40A |
POWER DISTRIBUTION |
Front Blower Motor Relay in the Relay Block |
|
| AS PSD MTR |
(40A) |
POWER DISTRIBUTION |
Right Power Sliding Door Control Unit (Power Sliding Doors) |
|
| 4 |
- |
- |
POWER DISTRIBUTION |
Not Used |
|
| 5 |
- |
- |
POWER DISTRIBUTION |
Not Used |
|
| 6 |
RRDEF |
40A |
POWER DISTRIBUTION |
Rear Window Defogger Relay in the Under-hood Fuse/Relay Box |
|
| 7 |
- |
- |
POWER DISTRIBUTION |
Not Used |
|
| 8 |
BMS |
7.5A |
POWER DISTRIBUTION |
Battery Sensor |
|
| 9 |
STOP & HORN |
20A |
POWER DISTRIBUTION |
Brake Pedal Position Switch, Horn Relay in the Under-hood Fuse/Relay Box |
|
| 10 |
HAZARD |
15A |
POWER DISTRIBUTION |
Hazard Warning Switch, MICU in the Driver's Under-dash Fuse/Relay Box |
|
| 11 |
INTR LT |
7.5A |
POWER DISTRIBUTION |
Interior Lights Cut Relay in the Relay Block |
|
