Home › Honda › 2011 › Odyssey EX › Repair and Diagnosis › Engine Performance › System › Advanced Diagnostics (P0962 - U1101) › DTC P15BF: CMP Sensor Signal Intermittent Interruption › Notes

DTC P15BF: CMP Sensor Signal Intermittent Interruption: Notes

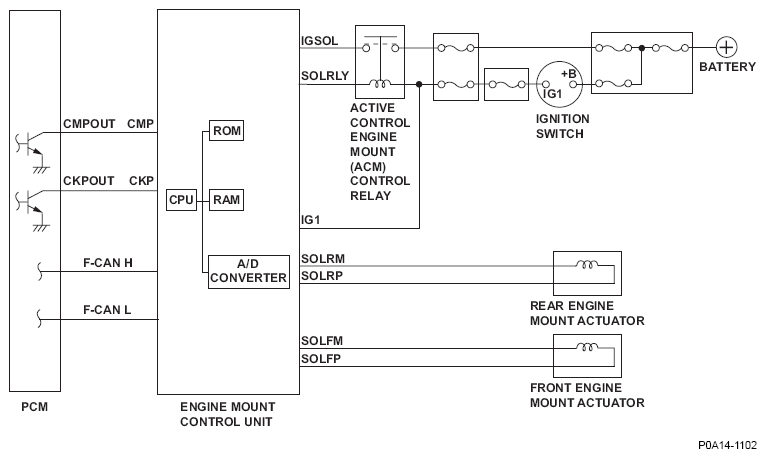

Fig 1: CMP Sensor - Circuit Diagram

G08538332
