GA-NET Audio(USB Adapter without Navigation)
GA-NET Audio(USB Adapter without Navigation)

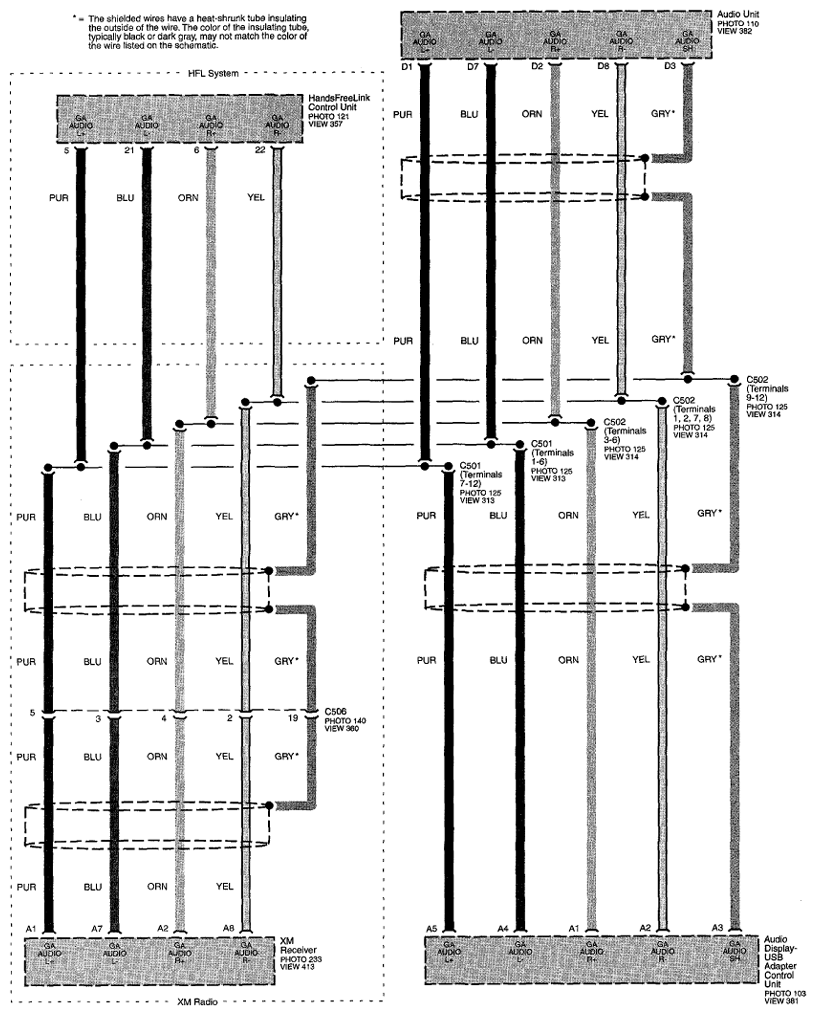

Fig 1: GA-NET Audio (USB Adapter Without Navigation) Circuit Diagram (Page 50-12)
