Repair and Diagnosis (Single Page)
›
Electrical
›
Body Electrical
›
OEM Circuit Diagrams
›
Multiplex Integrated Control System
›
GA-NET Bus (USB Adapter without Navigation)
GA-NET Bus (USB Adapter without Navigation)

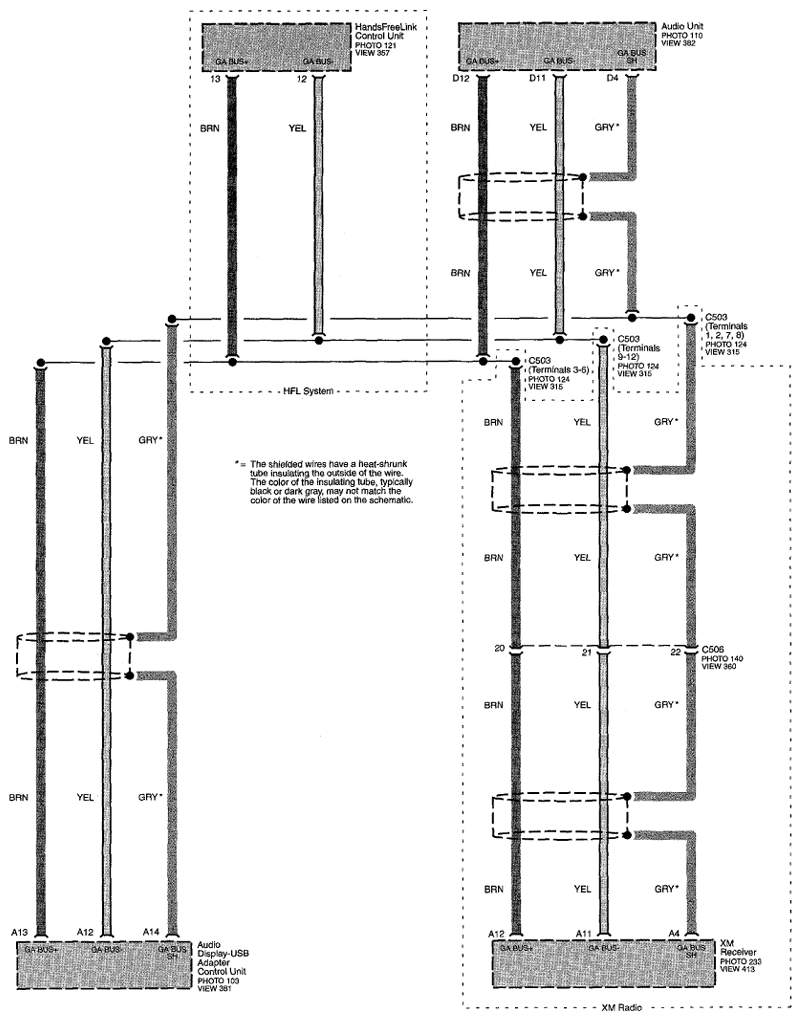

Fig 1: GA-NET Bus (USB Adapter Without Navigation) Circuit Diagram (Page 50-14)
