TPMS Control Unit (TPMS) (View 330)
TPMS Control Unit (TPMS) (View 330)
GRY
Behind Left Side of Dash
On Dashboard Wire Harness

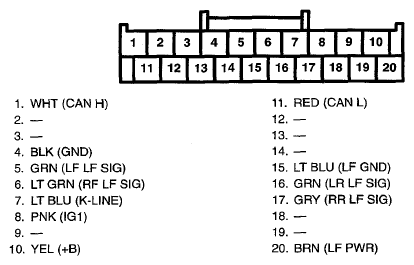

Fig 1: TPMS Control Unit (TPMS) Connector Terminal (View 330)
