Honda
›
2011
›
Pilot EX, 3.5 3
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Relays And Control Unit Locations
›
Seat
Relays And Control Unit Locations: Seat

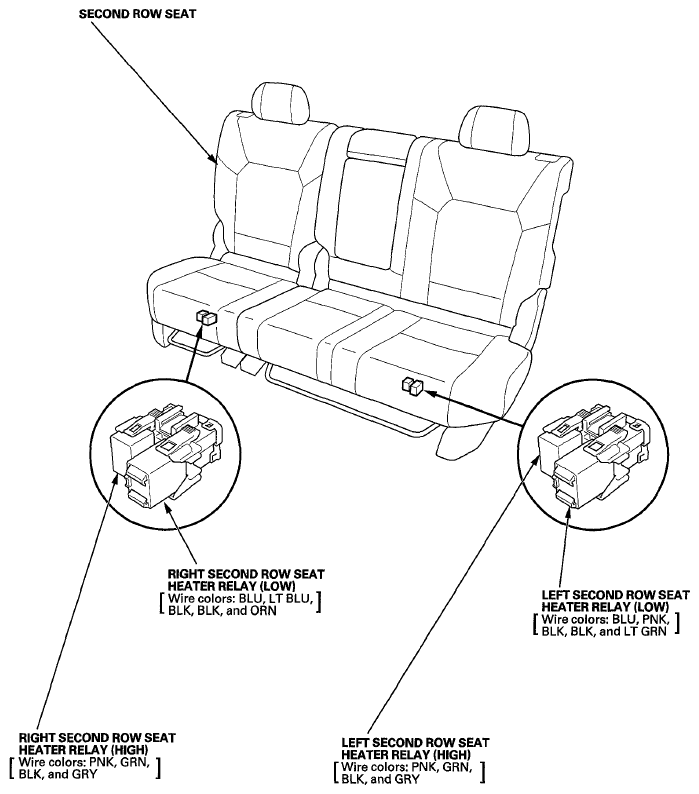

Fig 1: Identifying Relay And Control Unit Locations - Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Canada models
Fig 2: Identifying Relay And Control Unit Locations - Seat (Canada Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
