Driver's Power Seat Recline Motor/Position Sensor (DPMS) (View 274)

• WHT
• Under Driver's Seat
• On Driver's Seat Wire Harness

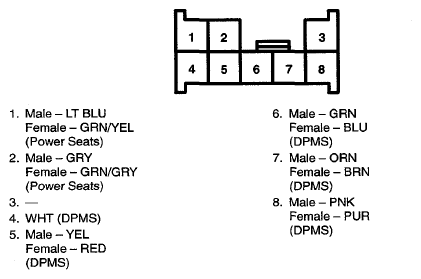

Fig 1: Driver's Power Seat Recline Motor/Position Sensor (DPMS) Connector Terminal (View 274)
