Honda
›
2011
›
Pilot EX, 3.5 3
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector End Views
›
Gauge Control Module (View 353)
Gauge Control Module (View 353)
GRY
Left Side of Dash
On Dashboard Wire Harness

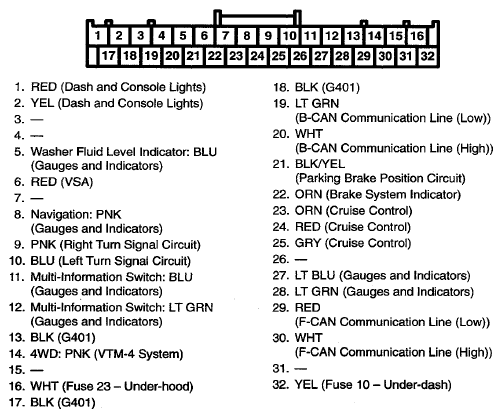

Fig 1: Gauge Control Module Connector Terminal (View 353)
