Front Subframe Alignment

NOTE:

• Loosely install new front subframe mounting bolts, then tighten the bolts to the specified torque in the sequence shown.
• After mounting the subframe and brackets loosely, align all of the positioning holes in the subframe, the subframe front bracket, and the body using a alignment pin as a guide, then tighten the bolts.
• After reinstalling all removed parts, check and adjust the front wheel alignment (see WHEEL ALIGNMENT ).

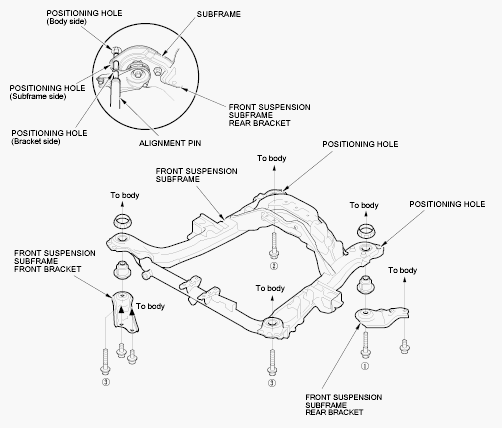

Fig 1: Identifying Front Subframe Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
