Wheel Speed Sensor Replacement: Front

  1. Turn the ignition switch to LOCK (0).
  2. Release the clamp (A), then disconnect the wheel speed sensor connector (B).

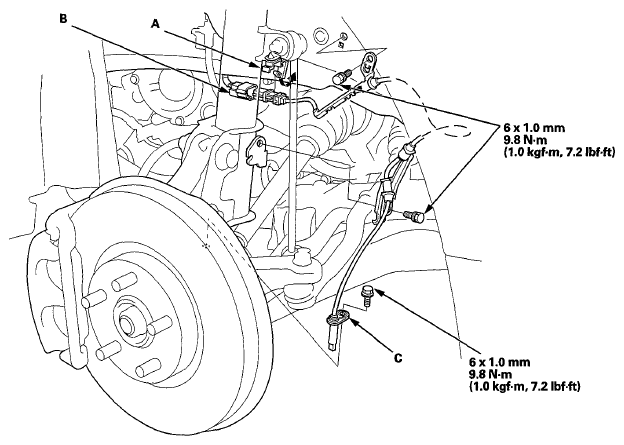

    Fig 1: Clamp, Wheel Speed Sensor Connector, Wheel Speed Sensor & Bolts (Front) With Torque Specifications
    G05963006Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the wheel speed sensor (C).
  4. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Install the sensor carefully to avoid twisting the wires.
    • If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
  5. Start the engine, and make sure the ABS and the VSA indicators go off.
  6. Test-drive the vehicle, and make sure the ABS and the VSA indicators do not come on.
