Fuse-to-Components Index

Fuse Number Fuse Name Amps See Component or Circuit Protected Notes
1 MAIN FUSE 120A POWER DISTRIBUTION Alternator, ELD Unit, Fuses 6, 7, 8, 9, 19, 20, 21, 22 and 23 and Multi-fuses 2 and 4 in Under-hood Fuse/Relay Box
- - POWER DISTRIBUTION Not Used
2 OP MAIN 80A UNDER-HOOD FUSE/RELAY BOX - MULTI-FUSES 2 AND 4 Fuses 5, 6, 7, 27, 28, 29, and 31 in Under-dash Fuse/Relay Box
IG MAIN 50A UNDER-HOOD FUSE/RELAY BOX - MULTI-FUSES 2 AND 4 Ignition Switch, Starter Cut Relay 1
3 - - POWER DISTRIBUTION Not Used
- - POWER DISTRIBUTION Not Used
4 H/L MAIN 50A UNDER-HOOD FUSE/RELAY BOX - MULTI-FUSES 2 AND 4 Fuses 18, 19, 20, and 21 in Under-dash Fuse/Relay Box
P/W MAIN 40A UNDER-HOOD FUSE/RELAY BOX - MULTI-FUSES 2 AND 4 Fuses 24, 25, 26, and 30 in Under-dash Fuse/Relay Box, Power Window Relay
5 - - UNDER-HOOD FUSE/RELAY BOX - FUSES 5, 10, 12, 13, 14, AND 16 Not Used
6 COND FAN 30A UNDER-HOOD FUSE/RELAY BOX - FUSES 6, 7, 8, 9, 19, 20, AND 21 A/C Condenser Fan Relay
7 COOLING FAN 30A UNDER-HOOD FUSE/RELAY BOX - FUSES 6, 7, 8, 9, 19, 20, AND 21 Radiator Fan Relay
8 RRDEF 30A UNDER-HOOD FUSE/RELAY BOX - FUSES 6, 7, 8, 9, 19, 20, AND 21 Rear Window Defogger Relay
9 BLOWER 40A UNDER-HOOD FUSE/RELAY BOX - FUSES 6, 7, 8, 9, 19, 20, AND 21 Front Blower Motor Relay
10 (FR FOG) 20A UNDER-HOOD FUSE/RELAY BOX - FUSES 5, 10, 12, 13, 14, AND 16 Fog Light Relay
11 SUB 15A UNDER-HOOD FUSE/RELAY BOX - FUSES 11, 15, 17, AND 18 EVAP Canister Vent Shut Valve, Front A/F Sensor (B2, S1), Front Secondary H02S (B2, S2), PCM, PGM-FI Sub-relay, Rear A/F Sensor (B1, S1), Rear Secondary H02s (B1, S2)
12 ACM 10A UNDER-HOOD FUSE/RELAY BOX - FUSES 5, 10, 12, 13, 14, AND 16 ACM Control Relay
13 (AS P/SEAT REC) (20A) UNDER-HOOD FUSE/RELAY BOX - FUSES 5, 10, 12, 13, 14, AND 16 Front Passenger's Power Seat Adjustment Switch Front Passenger's Power Seat
14 (AS P/SEAT SLI) (20A) UNDER-HOOD FUSE/RELAY BOX - FUSES 5, 10, 12, 13, 14, AND 16 Front Passenger's Power Seat Adjustment Switch Front Passenger's Power Seat
15 OIL LEVEL 7.5A UNDER-HOOD FUSE/RELAY BOX - FUSES 11, 15, 17, AND 18 A/C Condenser Fan Diode, A/C Condenser Fan Relay
16 H/L HI MAIN 20A UNDER-HOOD FUSE/RELAY BOX - FUSES 5, 10, 12, 13, 14, AND 16 Headlight High Beam Relay
17 RADIO 20A UNDER-HOOD FUSE/RELAY BOX - FUSES 11, 15, 17, AND 18 Audio Unit, Front HFL-Navigation-ANC Microphone (Navigation)
18 IG COIL 15A UNDER-HOOD FUSE/RELAY BOX - FUSES 11, 15, 17, AND 18 Ignition Coil Relay
19 MAIN 15A UNDER-HOOD FUSE/RELAY BOX - FUSES 6, 7, 8, 9, 19, 20, AND 21 PGM-FI Main Relay 1
20 MG CLUTCH 7.5A UNDER-HOOD FUSE/RELAY BOX - FUSES 6, 7, 8, 9, 19, 20, AND 21 A/C Compressor Clutch Relay

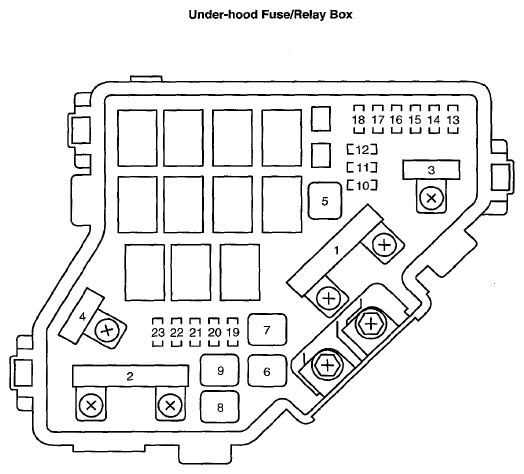

Fig 1: Under-Dash Fuse/Relay Box (6-7)
G07762222
Fuse Number Fuse Name Amps See Component or Circuit Protected Notes
21 DBW 15A UNDER-HOOD FUSE/RELAY BOX - FUSES 6, 7, 8, 9, 19, 20, AND 21 ETCS Control Relay
22 INTR LT 10A UNDER-HOOD FUSE/RELAY BOX - FUSE 22 , UNDER-HOOD FUSE/RELAY BOX - FUSE 22 Automatic Dimming Inside Mirror Connector 1 (Option Connector) (Automatic Dimming Inside Mirror without Navigation), Cargo Area Light, Driver's Door Courtesy Light, Driver's Vanity Mirror Light, Front Individual Map Lights, Front Passenger's Door Courtesy Light, Front Passenger's Vanity Mirror Light, HomeLink® Unit (HomeLink®), Ignition Key Switch/Key Light, Inside Tailgate Switch (Power Tailgate), Left Rear Door Courtesy Light, Left Running Board Light Connector (Option Connector), MICU, Rear Individual Map Lights (2nd), Rear Individual Map Lights (3rd), Right Rear Door Courtesy Light, Right Running Board Light Connector (Option Connector)
23 BACK UP 10A UNDER-HOOD FUSE/RELAY BOX - FUSE 23 , UNDER-HOOD FUSE/RELAY BOX - FUSE 23 Audio-HVAC Display Unit (without Navigation), DLC, Gauge Control Module, HandsFreeLink Control Unit (Navigation), Immobilizer-Keyless Control Unit, MICU, Navigation Display Unit (Navigation), Navigation Unit (Navigation), Power Mirror Control Unit (DPMS), Power Seat Control Unit (DPMS), Power Tailgate Control Unit (Power Tailgate), Power Window Master Switch, Rear Controller and Screen (RES)

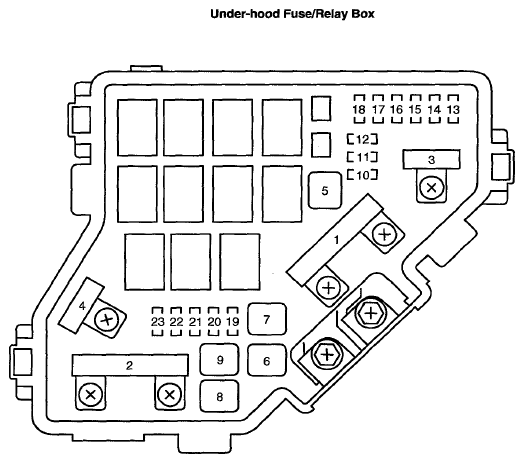

Fig 2: Under-Hood Fuse/Relay Box (6-9)
G07762223
