Component Location Index

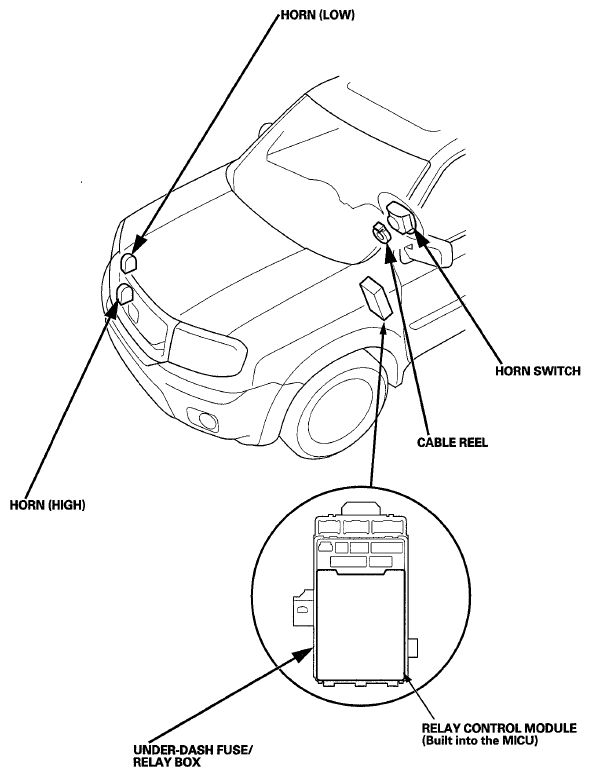

Fig 1: Identifying Horns Component Location
G05966255Courtesy of AMERICAN HONDA MOTOR CO., INC.
