Pilot EX, 3.5 4
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Fuel And Emissions Systems
›
System Description
›
Fuel and Emissions System Diagram
Fuel and Emissions System Diagram

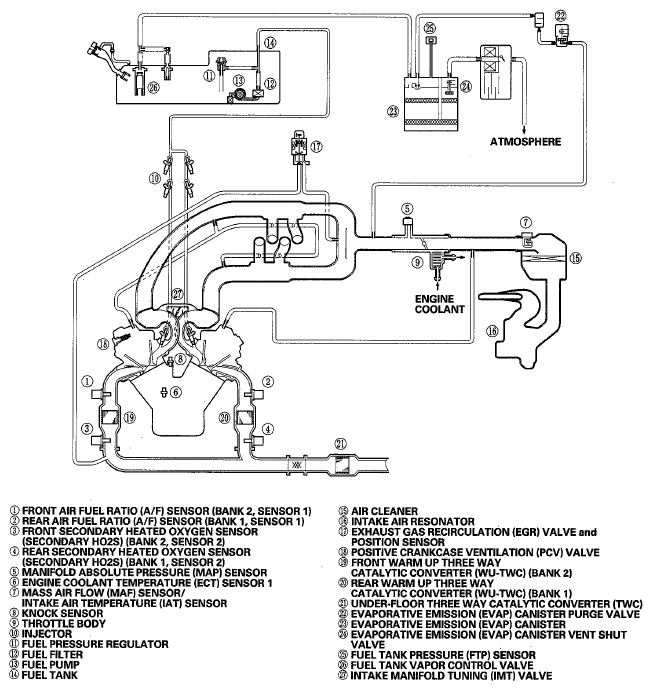

Fig 1: Identifying Fuel and Emissions System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
