Pilot LX, 3.5 3
›
Repair and Diagnosis
›
Body & Frame
›
Ignition Switch/Steering Lock
›
Circuit Diagram
Circuit Diagram

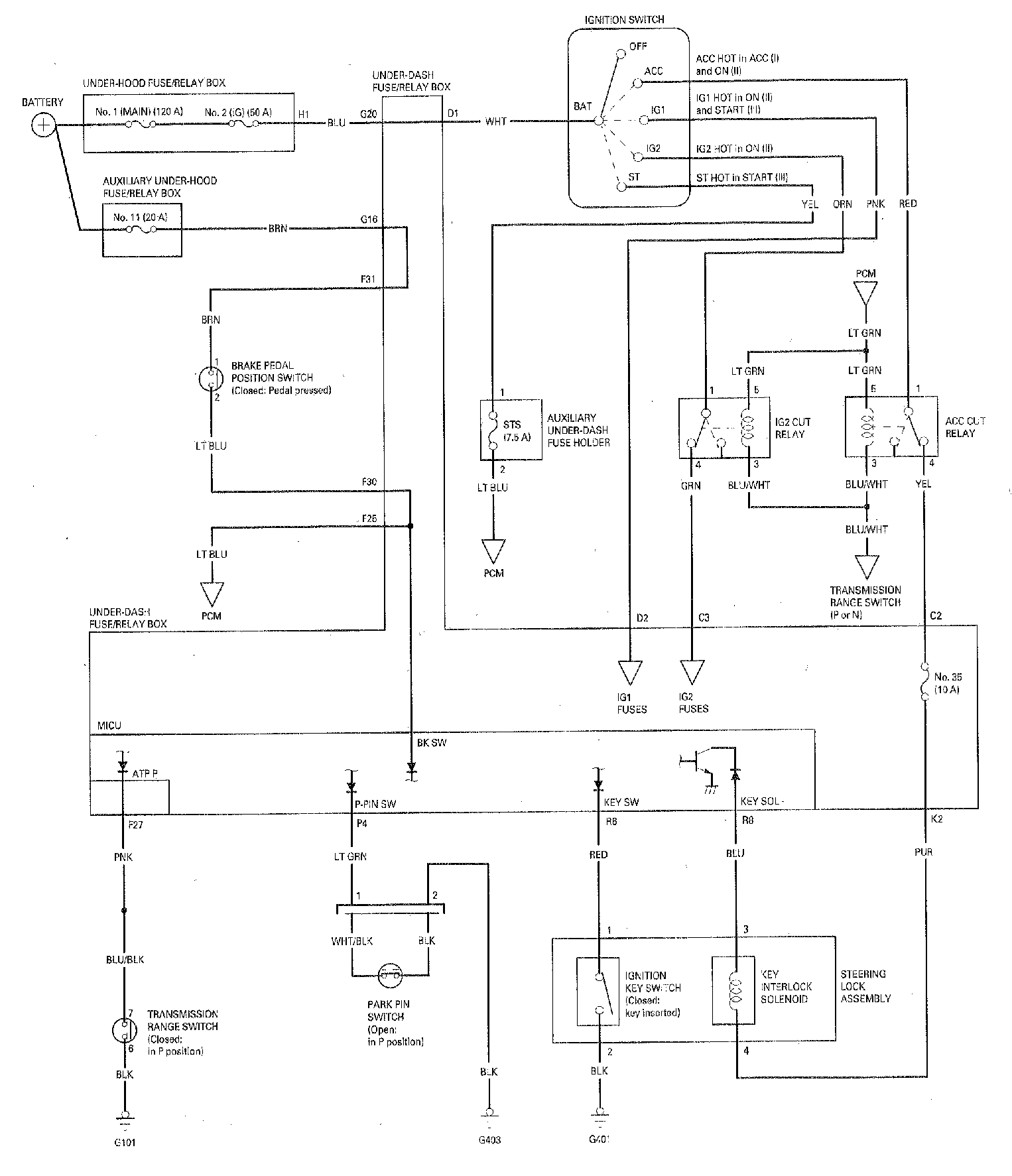

Fig 1: Ignition Switch Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
