CKP Pulse Plate Replacement

  1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL ).
  2. Remove the CKP pulse plate (A) from the crankshaft.

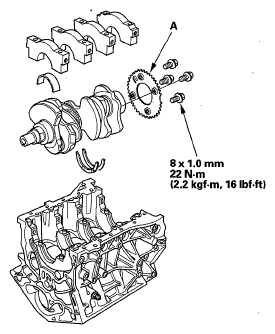

    Fig 1: CKP Pulse Plate With Torque Specifications
    G05964217Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the CKP pulse plate in the reverse order of removal.
