Danger/Warning/Caution Label Locations

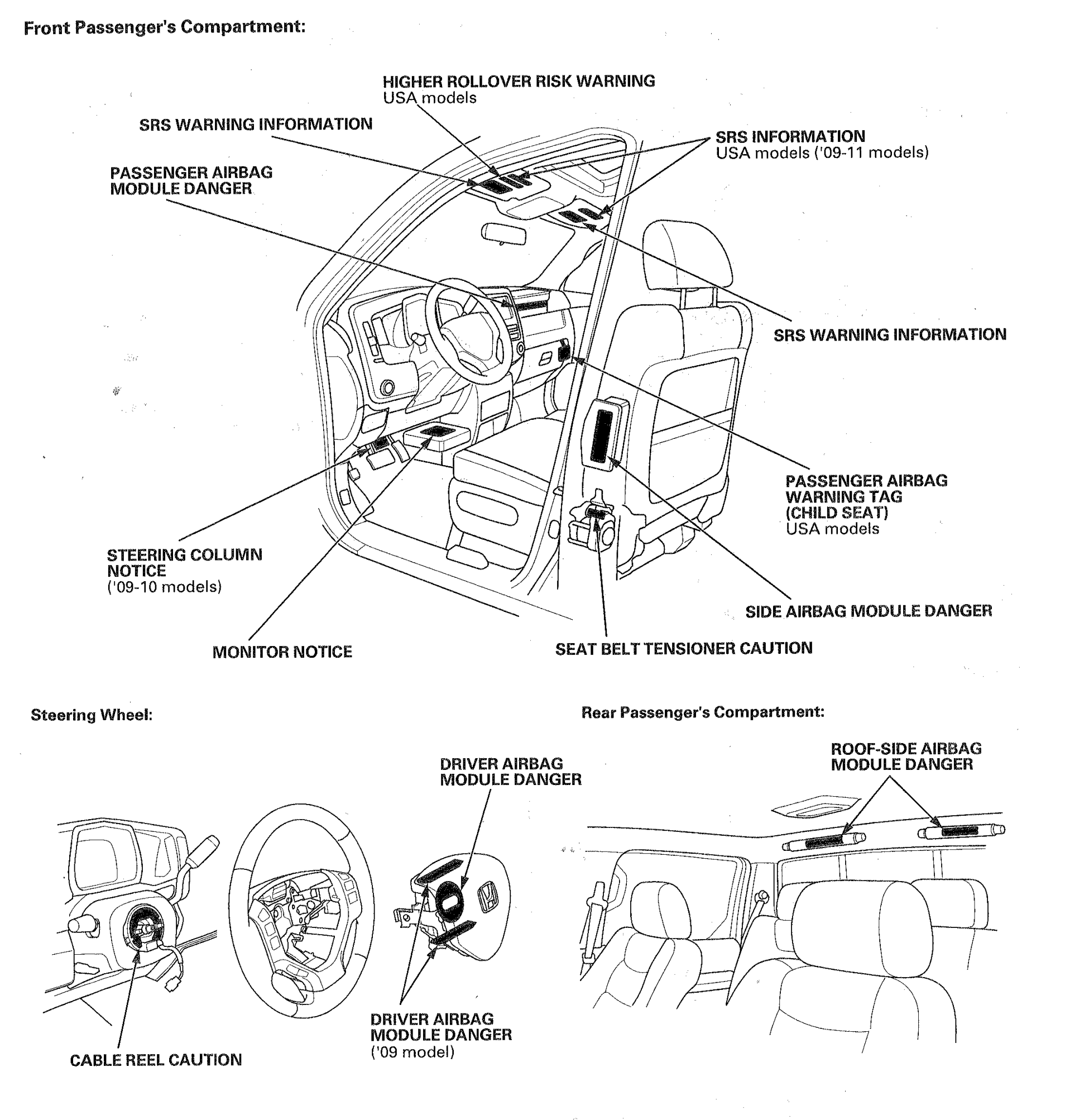

Fig 1: Identifying Caution Label Locations (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

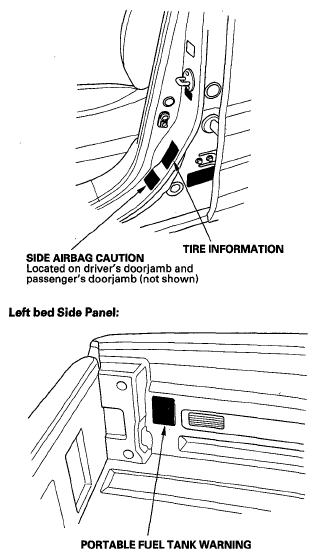

Fig 2: Identifying Caution Label Locations (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

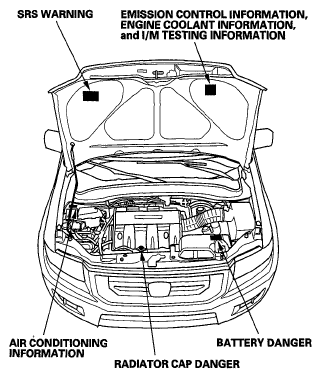

Fig 3: Identifying Caution Label Locations (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
