C302 Connector End View (View 253)

• WHT
• Under left side of dash
• Connects left engine compartment wire harness to dashboard wire harness (left branch)

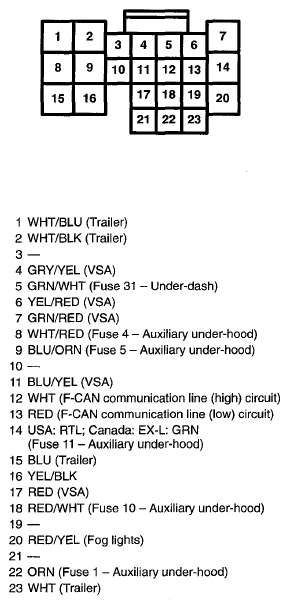

Fig 1: C302 Connector Terminal (View 253)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
