Interlock System: Notes

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION (SECTION 201) . For connector "VIEW", see OEM CONNECTOR END VIEWS .

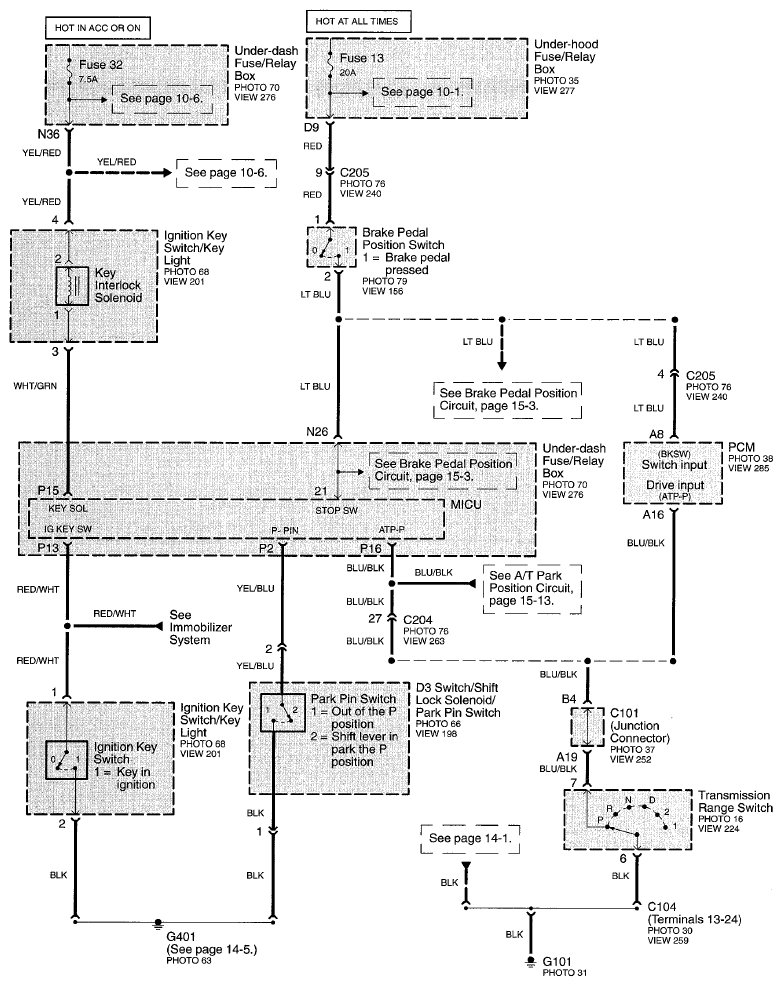

Fig 1: Interlock System Circuit Diagram (Page 138)

G07763664

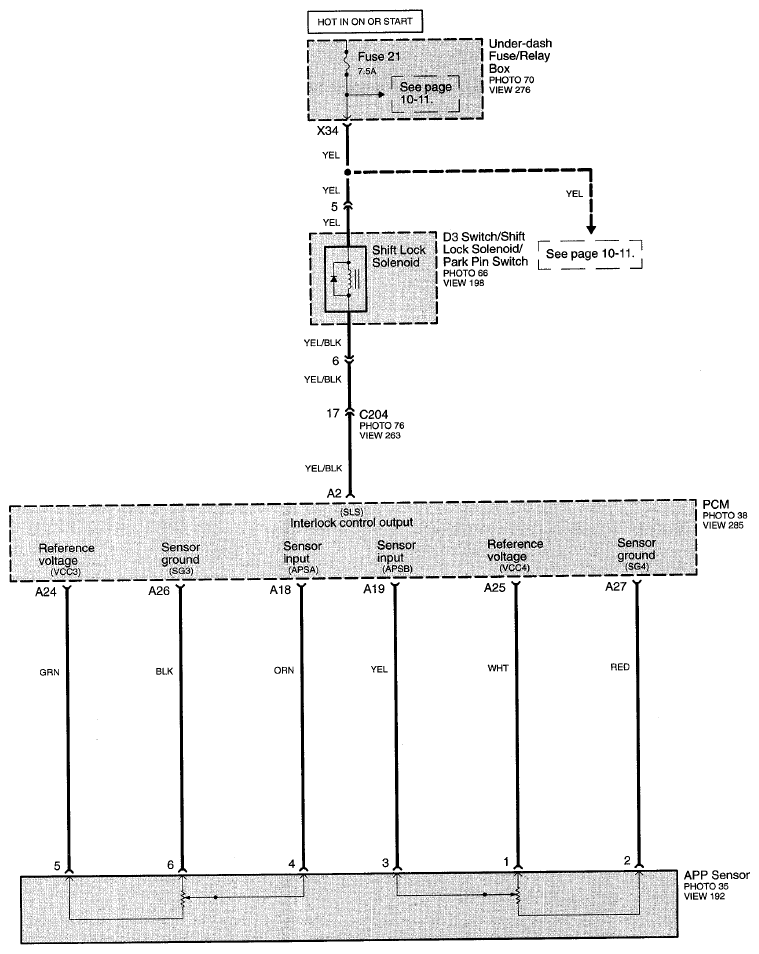

Fig 2: Interlock System Circuit Diagram (Page 138-1)

G07763665
