Component Location Index

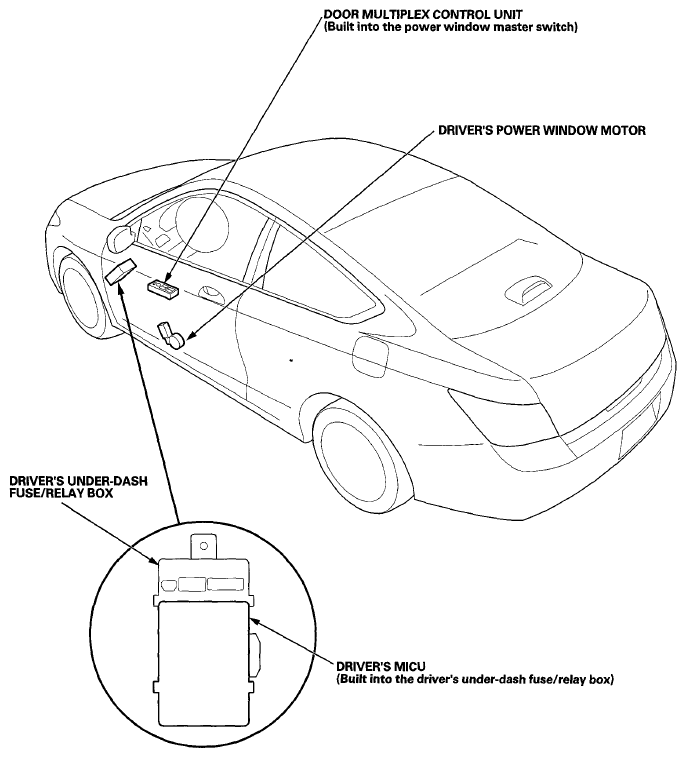

Fig 1: Identifying Power Windows Components Location (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

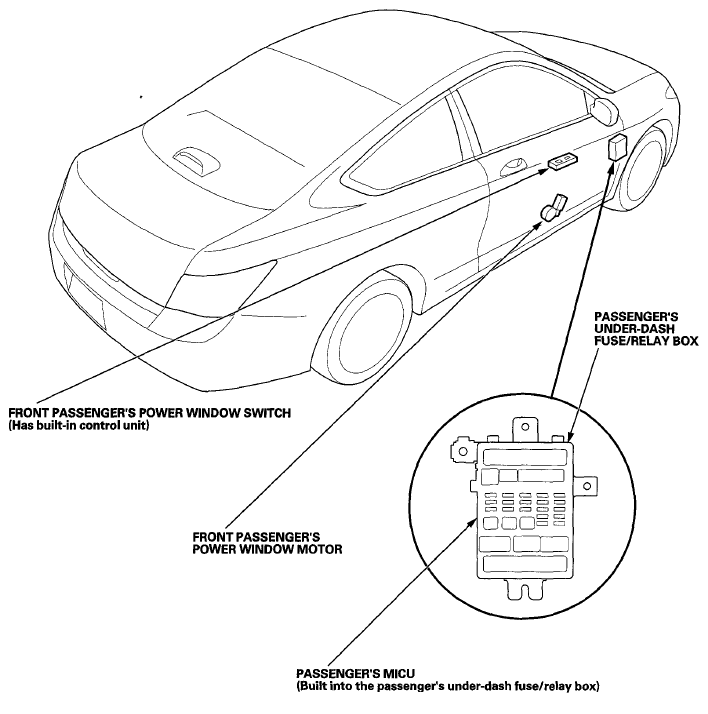

Fig 2: Identifying Power Windows Components Location (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

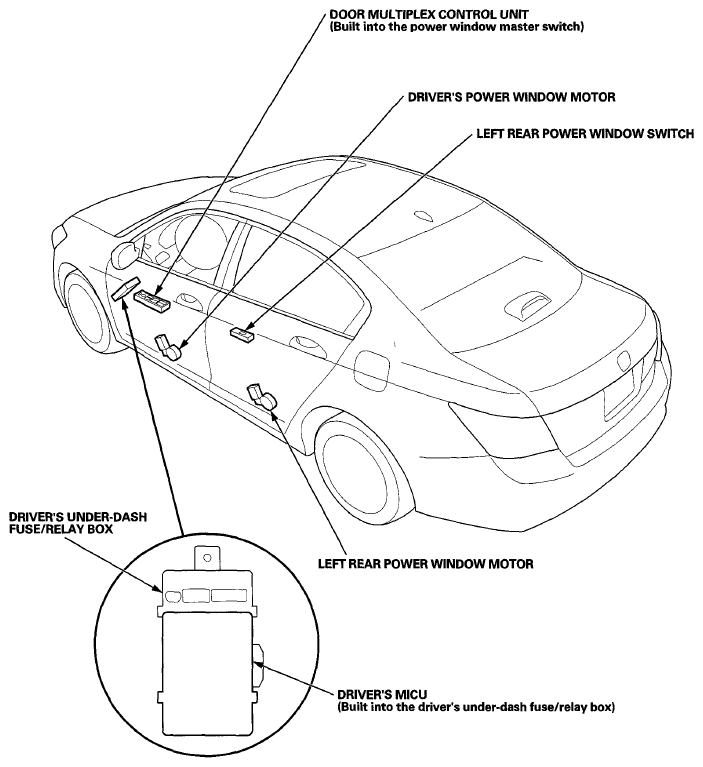

Fig 3: Identifying Power Windows Components Location (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

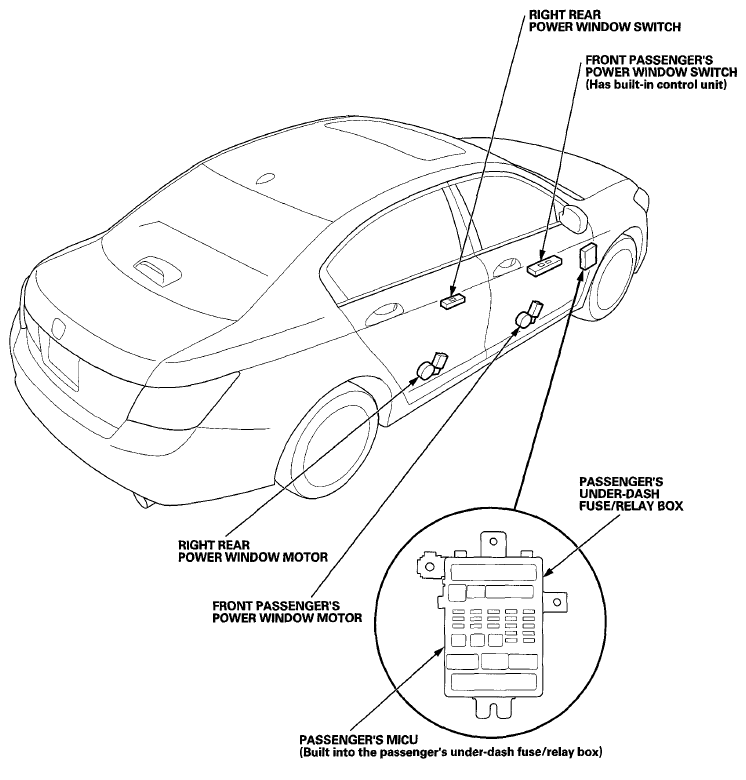

Fig 4: Identifying Power Windows Components Location (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
