Component Location Index

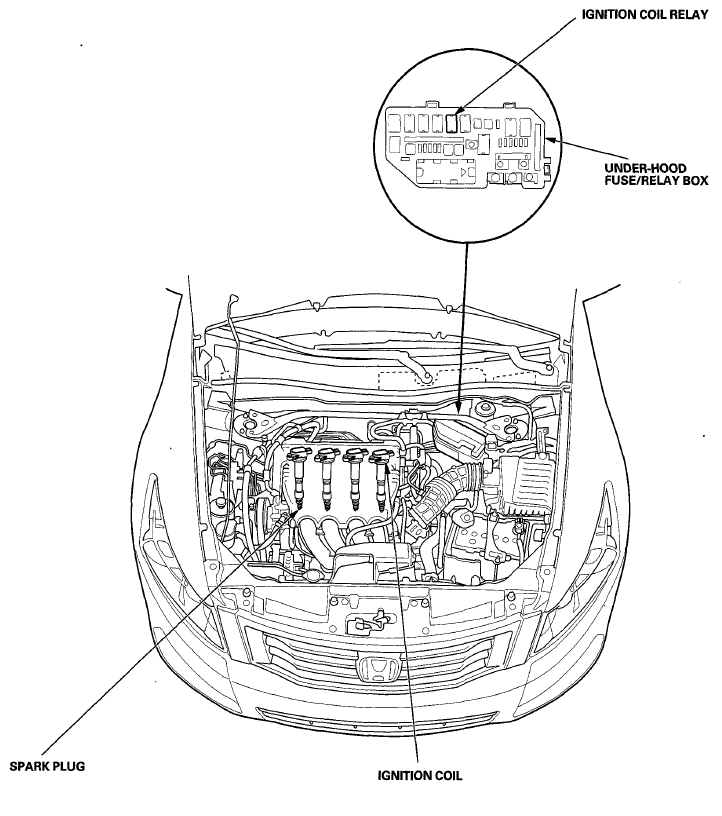

Fig 1: Identifying Ignition System Component Location
G07340690Courtesy of AMERICAN HONDA MOTOR CO., INC.
