Component Location Index

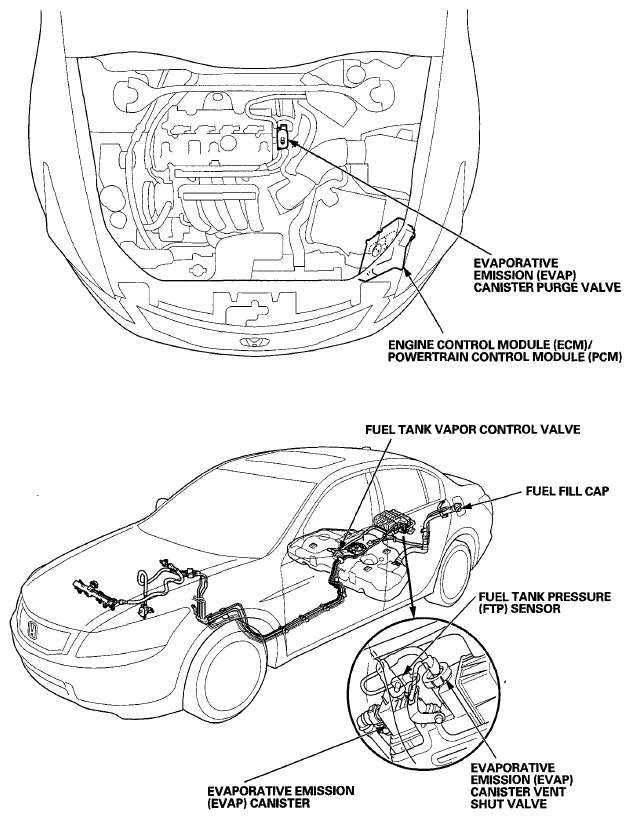

Fig 1: Identifying EVAP System Component Location
G07341798Courtesy of AMERICAN HONDA MOTOR CO., INC.
