MAP Sensor Replacement

Disconnect the MAP sensor connector (A).

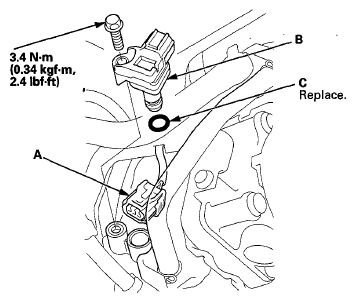

Fig 1: MAP Sensor Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the MAP sensor (B).
Install the parts in the reverse order of removal with a new O-ring (C).
