Component Location Index

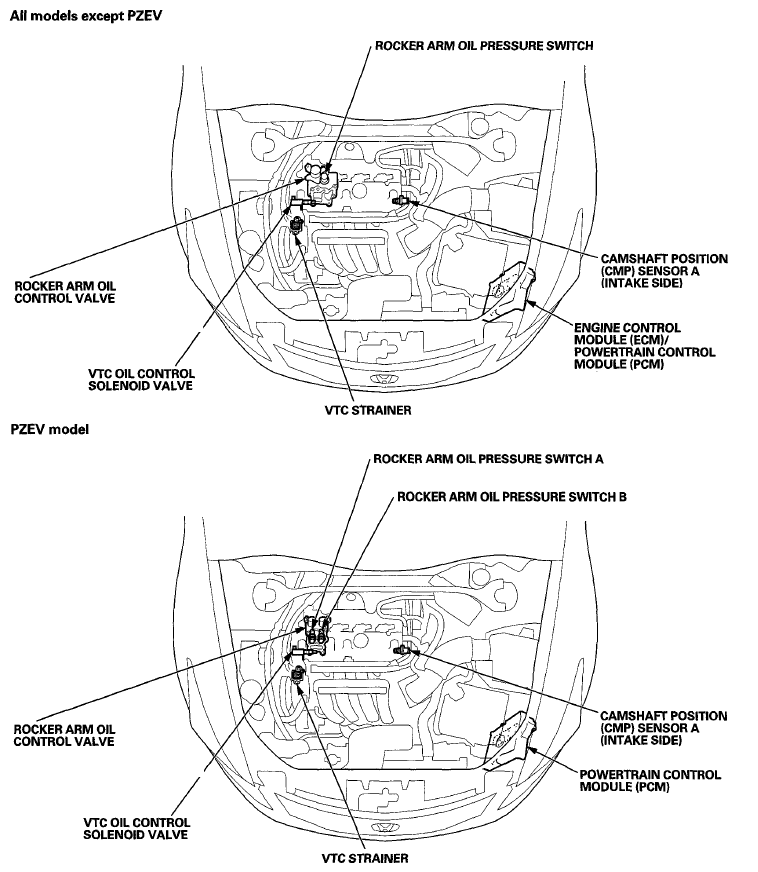

Fig 1: Identifying VTEC-VTC Components Location
G07341623Courtesy of AMERICAN HONDA MOTOR CO., INC.
