System Diagram

WARNING: This page is about a different variant/trim than selected.

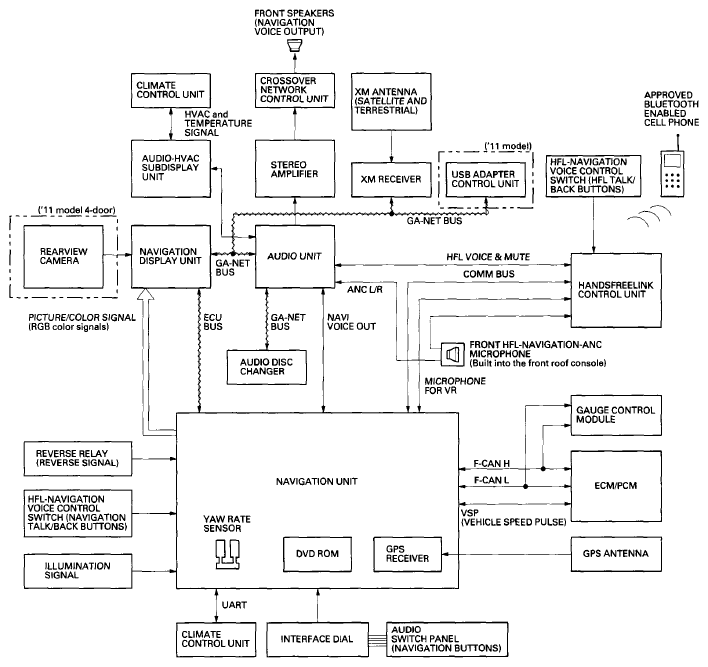

Fig 1: Navigation System Diagram
G07352812Courtesy of AMERICAN HONDA MOTOR CO., INC.
