Component Location Index

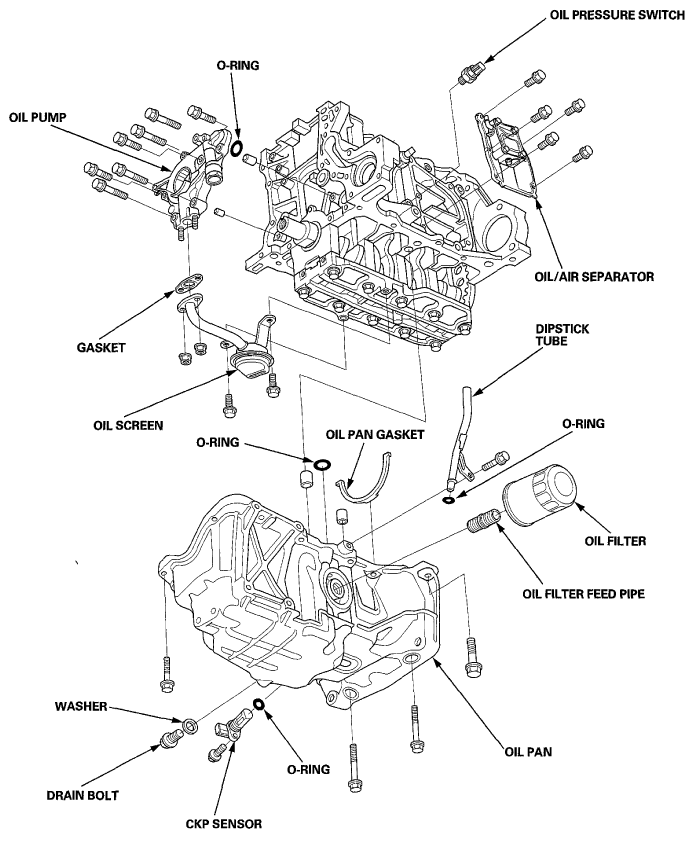

Fig 1: Identifying Engine Lubrication System Components
G06949569Courtesy of AMERICAN HONDA MOTOR CO., INC.
