Section 2 (Clutch)
›
Component Location Index
Component Location Index
WARNING:
This page is about a different variant/trim than selected.

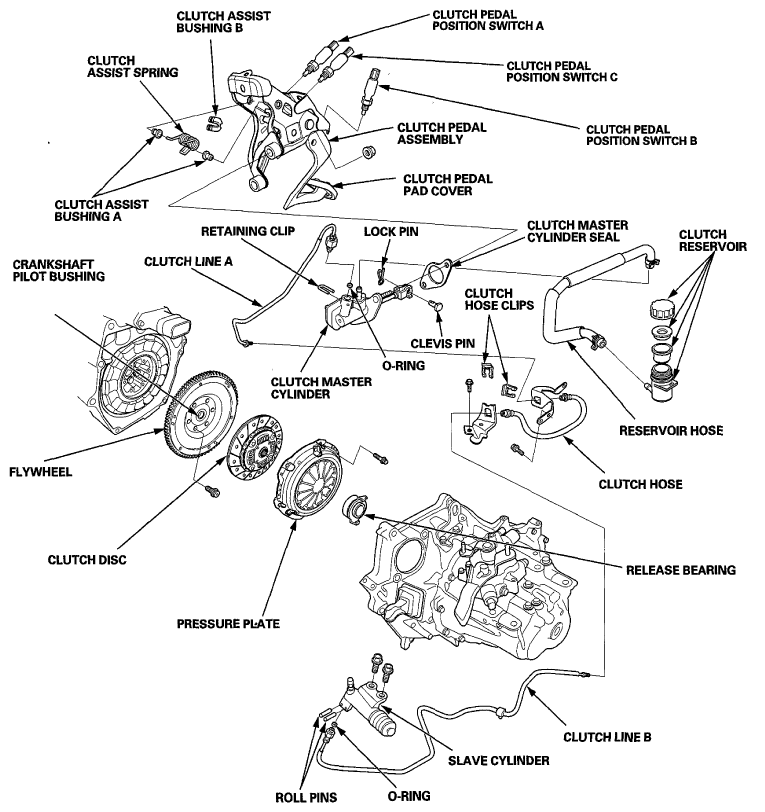

Fig 1: Identifying Clutch Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
