A/C Line Replacement
A/C Line Replacement

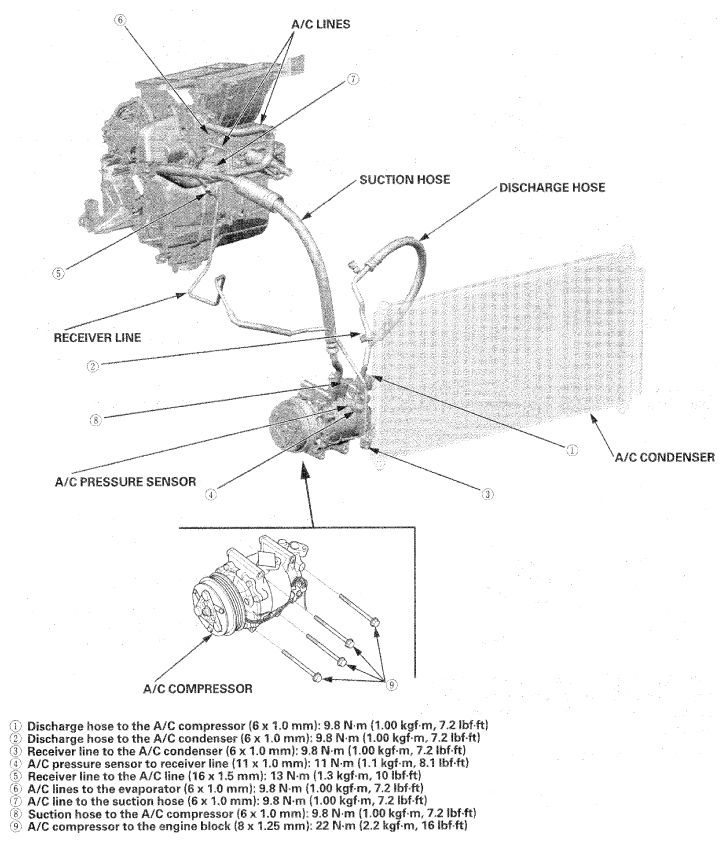

Fig 1: Identifying A/C Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
