SRS Unit Replacement: Installation

Install the SRS unit (A) with new TORX bolts (B), then connect the SRS connectors (C) to the SRS unit; push them into position until they click and the lever locks are fully secured (see WATER PROOF SRS CONNECTORS ).
NOTE: Be sure the SRS unit is sitting squarely against its bracket before torquing the TORX bolts.

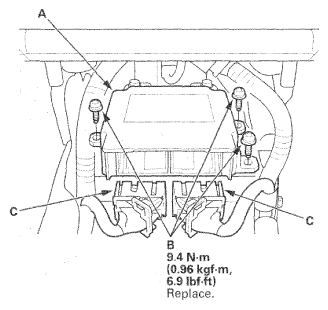

Fig 1: SRS Unit, TORX Bolts And SRS Connectors With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the 12 volt battery terminal reconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Make sure the SRS unit has the latest software. If it does not have the latest, update the software in the SRS unit (see SRS UNIT UPDATE ).
Do the ODS unit initialization (see ODS UNIT INITIALIZATION ).
Check the operation of the ODS unit with the HDS (see ODS UNIT OPERATION CHECK ).
Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
Reinstall all removed parts.
