A/T Gear Position Indicator Panel Light Replacement

  1. Remove the A/T gear position indicator panel trim (see A/T GEAR POSITION INDICATOR PANEL TRIM REPLACEMENT  ).
  2. Remove the A/T gear position indicator panel light socket (A), and replace the A/T gear position indicator panel light bulb (B).

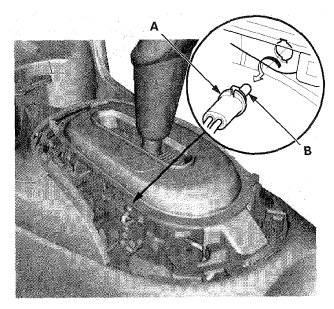

    Fig 1: Locating A/T Gear Position Indicator Panel Light Socket And A/T Gear Position Indicator Panel Light Bulb
    G06951142Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the A/T gear position indicator panel light socket (A).

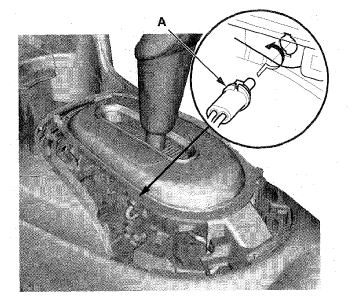

    Fig 2: Locating A/T Gear Position Indicator Panel Light Socket
    G06951143Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the A/T gear position indicator panel trim (see A/T GEAR POSITION INDICATOR PANEL TRIM REPLACEMENT  ).
