FixVault
Home
›
Honda
›
2012
›
CR-Z Base, Automatic CVT Trans
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
CVT
›
A/T Gear Position Indicator
›
Component Location Index
Component Location Index

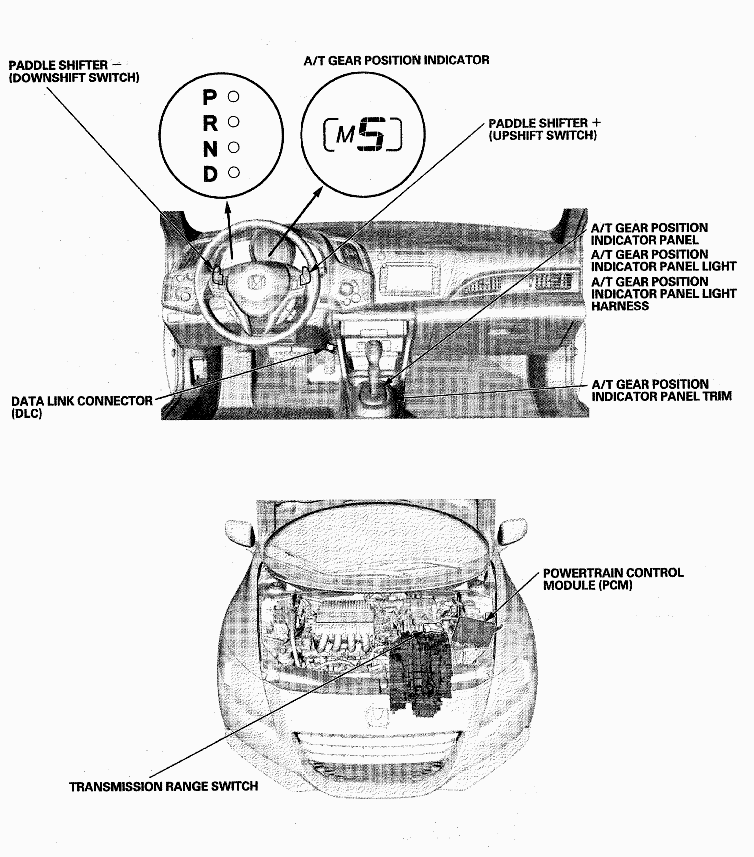

Fig 1: Identifying A/T Gear Position Indicator Component Location Index
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
