A/T Interlock System
›
Component Location Index
Component Location Index

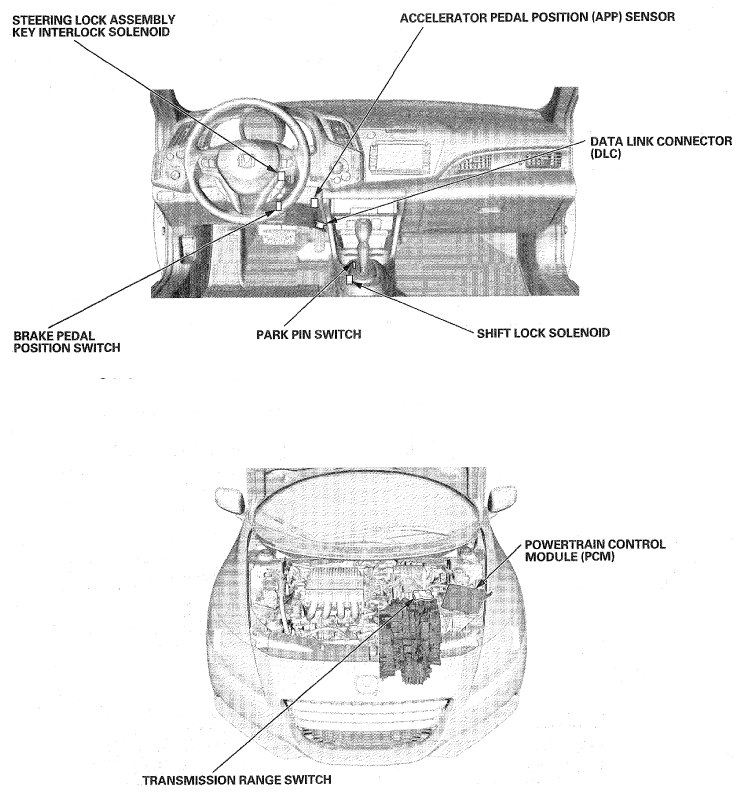

Fig 1: A/T Interlock System Component Location Index
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
