System Description
›
Electronic Control System
›
PCM CVT Control System Electrical Connections
PCM CVT Control System Electrical Connections

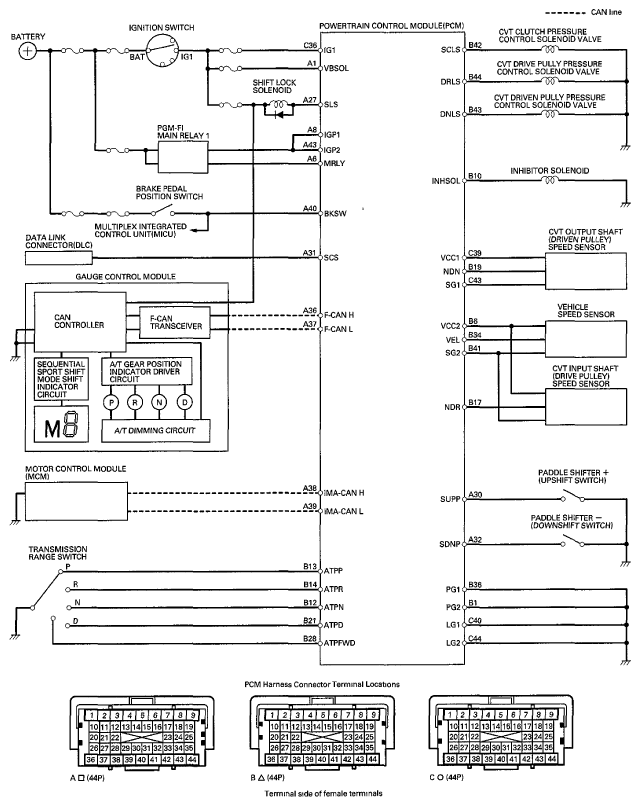

Fig 1: PCM CVT Control System Electrical Connections Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
