Rear Console Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the center console or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Insert the appropriate trim tool into the notch (A) of the rear console (B) to detach the clips, then remove it.

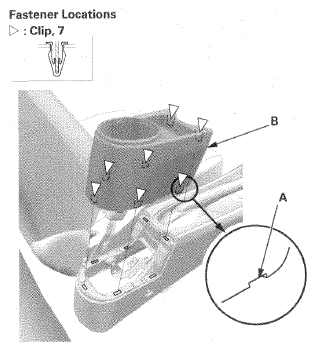

Fig 1: Identifying Notch And Rear Console With Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the console in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
