Dashboard Side Lid Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the dashboard or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Driver's dashboard side lid is shown; Passenger's dashboard side lid is similar.

Gently pry the edge of the lid with the appropriate trim tool to detach the hooks (A), then remove the dashboard side lid (B).

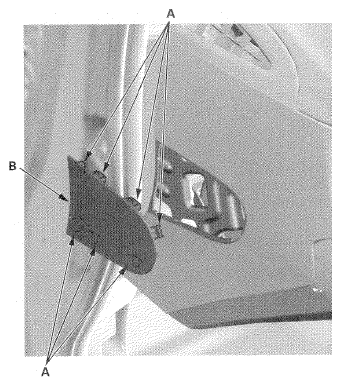

Fig 1: Identifying Dashboard Side Lid And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the lid in the reverse order of removal, and push the hooks into place securely.
