Passenger's Middle Panel Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the dashboard or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the passenger's dashboard panel (see PASSENGER'S DASHBOARD PANEL REMOVAL/INSTALLATION ).
Pull out the passenger's middle panel (A) by hand to detach the clips and the tabs (B), then remove it.

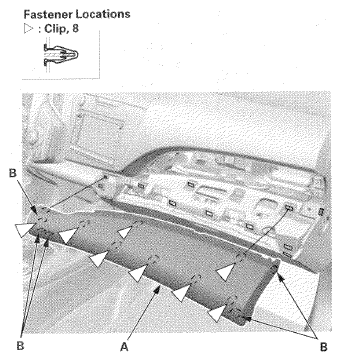

Fig 1: Identifying Passenger's Middle Panel And Tabs With Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the tabs into place securely.
