Upper Pocket Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the dashboard or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove these items:
- Audio unit (without navigation) (see AUDIO UNIT REMOVAL/INSTALLATION )
- Audio-navigation unit (with navigation) (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION )
Remove the upper pocket (A).
1. Remove the screw.
2. Pull out the upper pocket slightly toward you, and detach the clips and the pins (B).

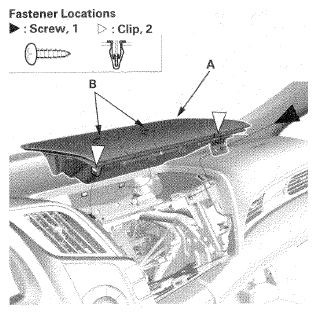

  Fig 1: Identifying Upper Pocket And Pins
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, detach the hooks (A), then remove the mat (B) from the upper pocket (C).

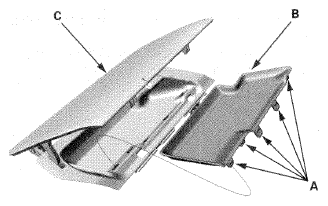

Fig 2: Identifying Hooks, Mat And Upper Pocket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the upper pocket in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips, hooks, and pins into place securely.
