Component Location Index

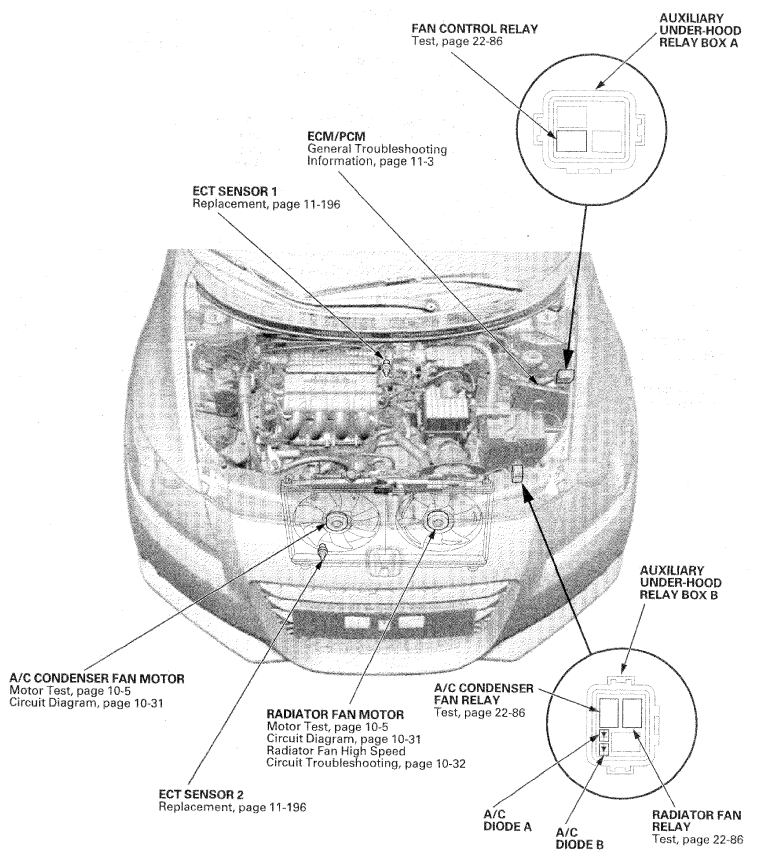

Fig 1: Identifying Fan Control System Components
G06949701Courtesy of AMERICAN HONDA MOTOR CO., INC.
