Communication Systems Circuit Diagram

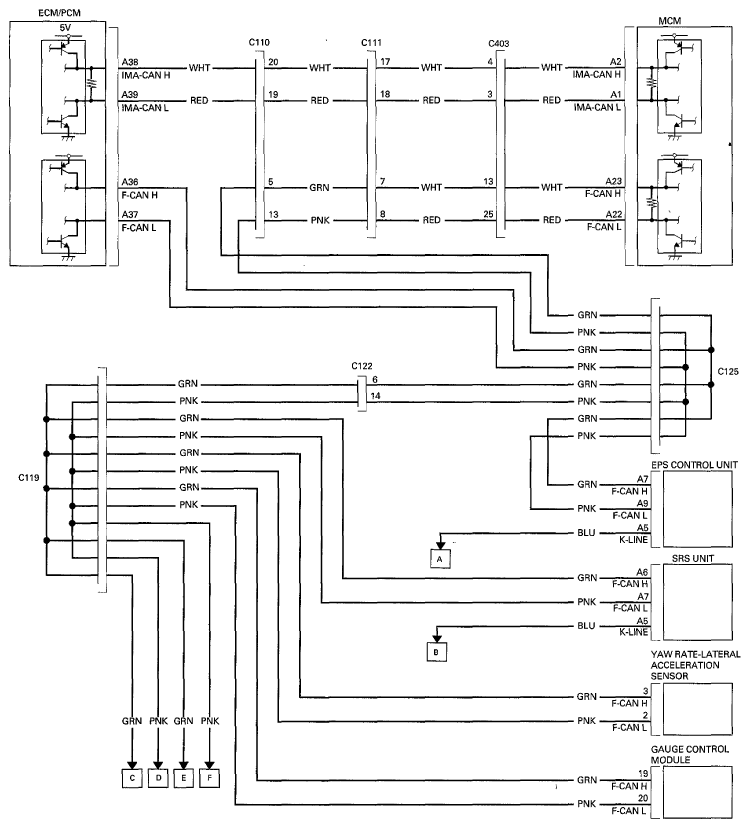

Fig 1: Communication Systems Circuit Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

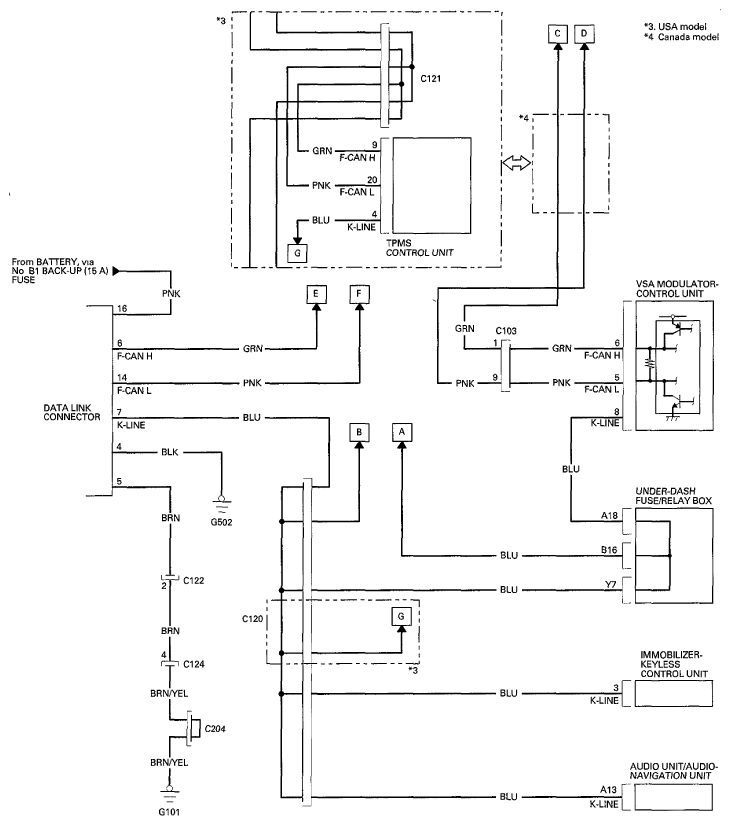

Fig 2: Communication Systems Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
