Electronic Throttle Control System Diagram

The electronic throttle control system consists of the throttle actuator, TP sensor A/B, the APP sensor A/B, the ETCS control relay, and the ECM/PCM.

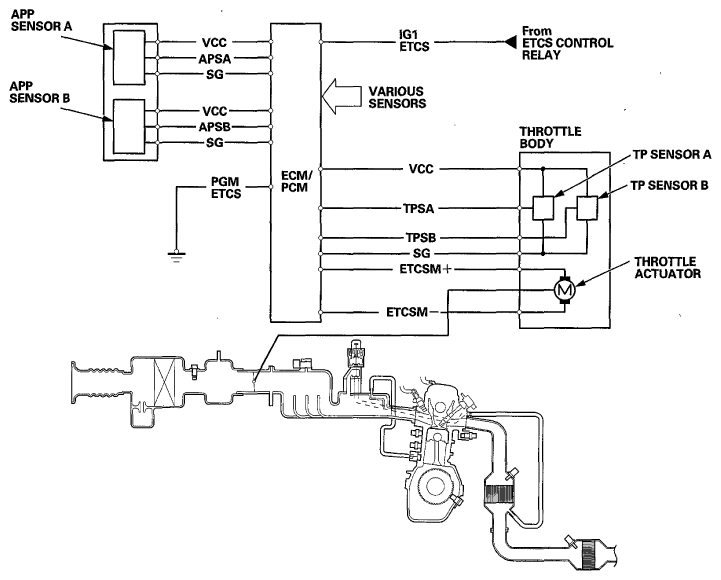

Fig 1: Electronic Throttle Control System Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
