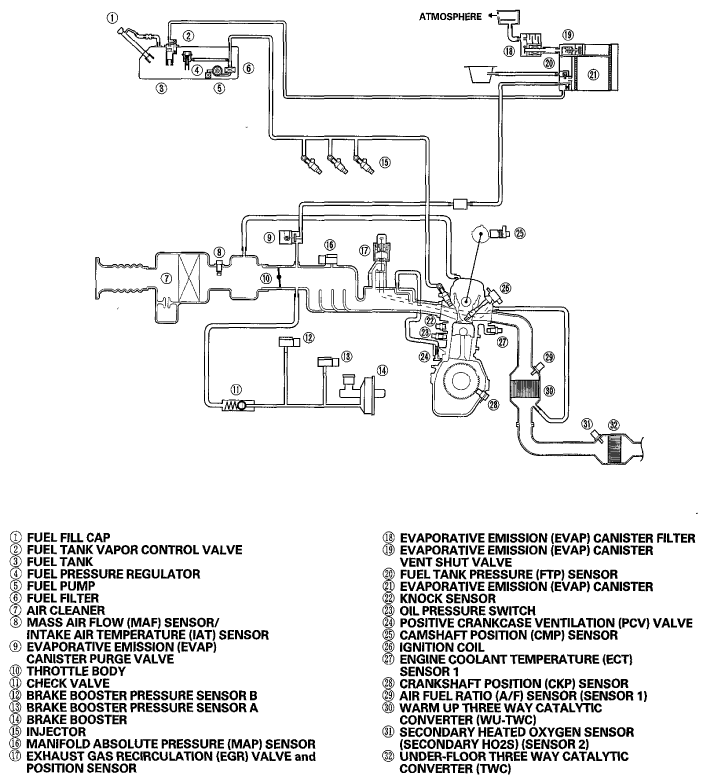

Home › Honda › 2012 › CR-Z Base, Standard Trans › Repair and Diagnosis › Engine Performance › System › Fuel And Emissions Systems › System Description › Fuel and Emissions System Diagram › System Diagram
