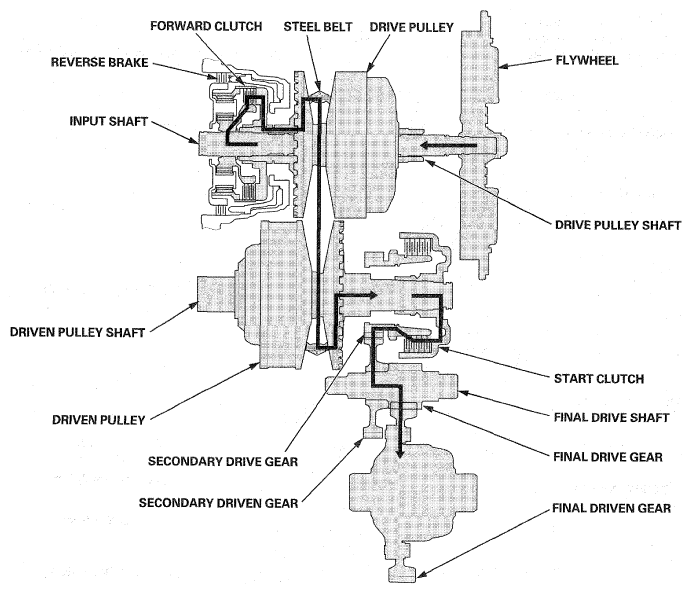

Forward Range; D Position
WARNING: This page is about a different variant/trim than selected.
- Forward clutch: engage
- Reverse brake: disengage
- Start clutch: engage
- Hydraulic pressure is applied to the forward clutch and the start clutch, and the sun gear drives the forward clutch.
- The forward clutch drives the drive pulley shaft, which drives the driven pulley shaft linked by the steel belt.
- The driven pulley shaft drives the secondary drive gear via the start clutch.
- Power is transmitted to the secondary driven gear and the final drive gear, which in turn drives the final driven gear.
