IPU Module Air Duct Removal/Installation

Remove the cargo floor lid, the IPU duct cover, and the cargo area side trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREA ).
Remove the IPU module air ducts (A).

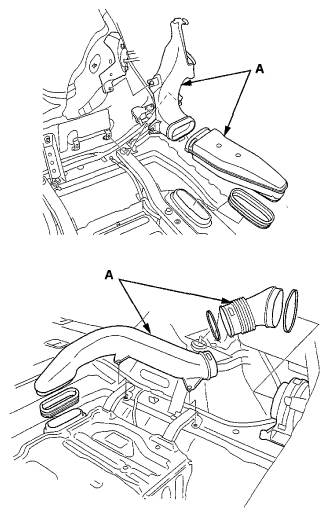

Fig 1: Identifying IPU Module Air Ducts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
