Power Cables

The IMA motor power cable connects the IMA motor and the MPI module. The cable feeds through an aluminum tube for damage protection and to prevent electrical noise. The 12 volt power cable from the DC-DC converter goes through the same aluminum tube. This tube is attached to the underside of the vehicle by orange-colored tube clamps.

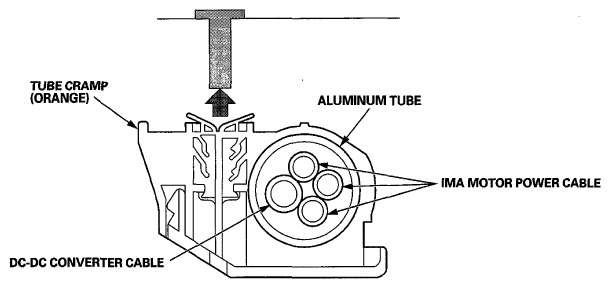

Fig 1: Identifying IPU Motor Power Cable, DC-DC Converter Cable, Aluminum Tube And Tube Cramp

Courtesy of AMERICAN HONDA MOTOR CO., INC.
