System Structure: Wheels

The TPMS will not work unless TPMS type wheels are installed on the vehicle. The original equipment wheels have a "TPMS" mark (A) on them. The wheels also have counterweights (B) incorporated on the opposite side of the tire pressure sensor (C) to counterbalance the weight of the sensor.

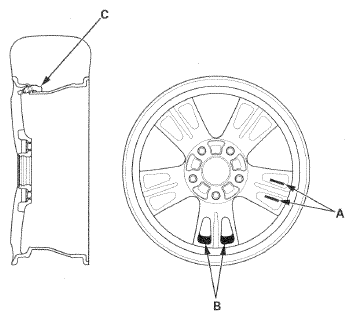

Fig 1: Identifying Tire Pressure Sensor AND TPMS Marks

Courtesy of AMERICAN HONDA MOTOR CO., INC.
