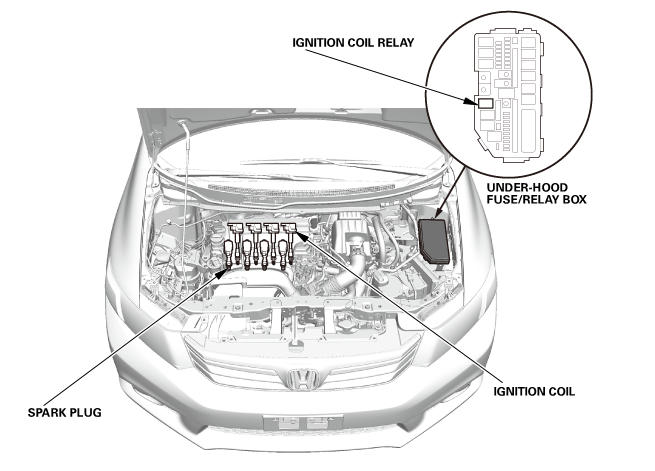

Ignition System Component Location Index

Courtesy of HONDA, U.S.A., INC.

IGNITION COIL RELAY	Test - Refer to: Power Relay Test (2012), or Power Relay Test (2013), or Power Relay Test (2014-15)
SPARK PLUG	Inspection
IGNITION COIL	Ignition Timing Inspection
	Ignition Coil and Spark Plug Removal/Installation
