Spark Plug Inspection: Installation

Spark Plug

Courtesy of HONDA, U.S.A., INC.

1. Screw the plugs into the cylinder head, finger-tight.

2. Tighten the plugs to the specified torque.

Specified Torque:
27 N.m (2.8 kgf.m, 20 lbf.ft)

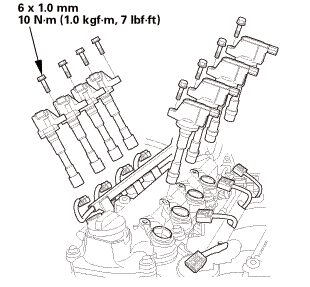

Ignition Coil

Courtesy of HONDA, U.S.A., INC.

1. Install the ignition coils.

2. Connect the connectors.

Engine Cover

Courtesy of HONDA, U.S.A., INC.

1. Install the engine cover.
